KICHLER
Kichler Gen 4 Large Varia Line - CBR Adjustable Integrated Accent 15-60 Deg, 600-1200 Lm 27K or 30K
$553.99
List price, excluding tax
Eco fee$0.15 each
Added at checkout and shown on your invoice.
Sign in to see your account pricing. Contract customers pay less than list on most items.
6 options in this range.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaOut of stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock

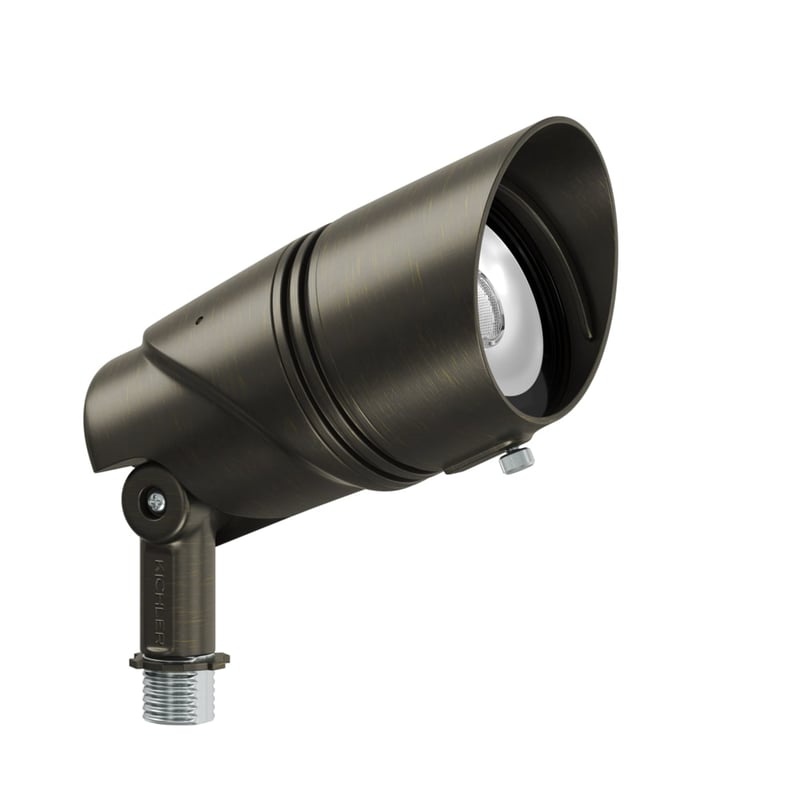

Varia Large adjustable LED accent light, 15-60 degree beam, 2700K or 3000K, 12V
One integrated-LED fixture with four lumen levels (600, 800, 1,000 and 1,200 lm), a choice of 2700K or 3000K, and a beam you can adjust continuously from 60 to 15 degrees. Set the lumens and colour temperature with the included magnetic key. Centennial Brass finish, brass body, tempered glass lens.
Light output
- Up to 1,200 lm from 19.6 W (22.7 VA), CRI 80, rated life 50,000 hours
- Dims from 100% to 10% lumen output with the PLC Dimmer; a PLC Dimmer run takes up to 20 fixtures, and non-dimmable fixtures at the end of the run do not count toward that limit
Installation
- Wet location rated, IP66, with 3,000-volt fixture level surge protection
- 48 in (122 cm) lead connects with wire nuts; 8 in mounting stake, gel-filled wire nuts and magnetic key in the box
- Operating range 9-15 V AC, for consistent output along the run
Pairs well with
- PLC Dimmer (KIC-15DM20SS): dims this light from 100% to 10% lumen output
- Round Mounting Base, Centennial Brass (KIC-15493CBR)
- 6 in Male to Female Riser, Centennial Brass (KIC-15510CBR)
- Mounting Tree Bracket, Centennial Brass (KIC-15516CBR)

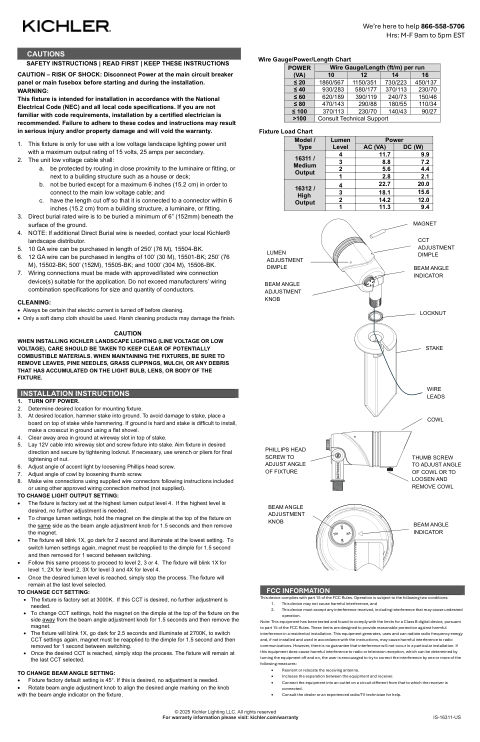

Instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- The Lumen Effects System allows you to easily switch between four lumen levels (600, 800, 1,000 and 1,200) for precise illumination with the included Magnetic Key
- For enhanced layout flexibility, non-dimmable fixtures can be installed at the end of the same wire run as the PLC Dimmer, but won't dim or count toward the 20-fixture limit, or simply run a separate cable run for non-dimming fixtures
- Adjustable beam angle allows you to easily fine tune the beam angle continuously between 60 and 15 degrees all within one fixture
- Select between 2700K and 3000K color temperatures using the Magnetic Key to find the right hue of white light to match the object you are illuminating, or mix color temperatures on the same job to create unique lighting effects
- Integrated LED light source for low maintenance, long lasting fixture that requires no lamp changing
- Certified through an independent 3rd-party lab, this IP66-rated design provides a dust and watertight housing that can protect against strong jets of water that can occur in coastal areas with strong storms or applications close to sprinklers
- 3,000-volt fixture level surge protection protects against power surges and irregularities
- 9 to 15V operating range - Ensures consistent light output throughout a run
| Brand | Kichler |
|---|---|
| Manufacturer part # | 16312CBR |
| UPC | 783927084222 |
| Input voltage | 12 V |
| Operating voltage range | 9-15 V AC |
| Light source | Integrated LED |
| Wattage | 19.6 W |
| Volt-amperes | 22.7 VA |
| Lumens | 1,200 lm |
| Colour temperatures | 2700K or 3000K (selectable) |
| CRI | 80 |
| Rated life | 50,000 hours |
| Dimmable | Yes, with PLC Dimmer |
| Finish | Centennial Brass |
| Material | Brass |
| Lens | Tempered glass |
| Wet location rated | Yes |
| Location | Exterior |
| Ingress protection | IP66 |
| Surge protection | 3,000-volt fixture level |
| Lead wire length | 48 in (122 cm) |
| Wire connectors | Wire nuts |
| Product dimensions | 7 × 3 × 4 in (18 × 8 × 10 cm), L × W × H |
| Weight | 3.49 lb (1.6 kg) |
