Kichler PLC Dimmer - True 0%-100% - Not limited to specific Wattage - Water Resistant
$328.99
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaOut of stock
WestsideOut of stock
BurnabyOut of stock
VancouverIn stock
LangleyOut of stock
CalgaryIn stock

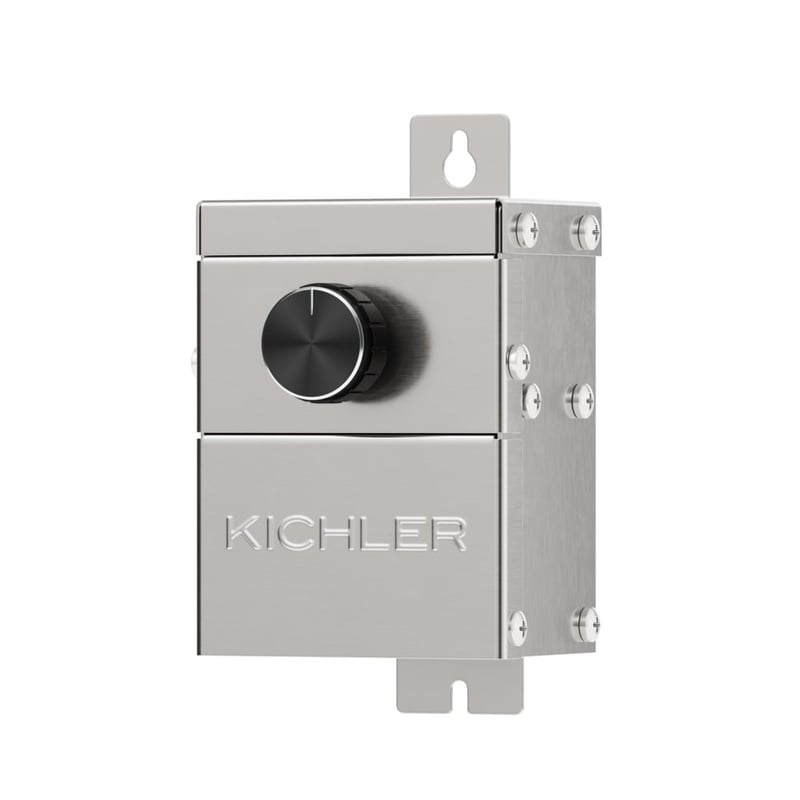

PLC dimmer for 12V landscape lighting, controls up to 20 fixtures
A compact stainless steel dimmer for PLC dimming compatible fixtures. The housing resists the weather, so there is no separate weatherproof box to buy, and the flicker-free dimming is better than a phase-cut dimmer.
Loading
- Controls up to 20 PLC dimming compatible fixtures
- Non-dimmable fixtures can sit at the end of the same run, but will not dim or count toward the 20-fixture limit
- Mixing dimmable and non-dimmable fixtures on one run does not shorten LED life
Installation
- Wires like a standard fixture: power in from the transformer, power out to the dimmed load
- 4.5 in (11 cm) leads with wire nuts; two mounting screws and two anchors in the box
- Small, at 5.62 in (14 cm) tall, so it mounts discreetly

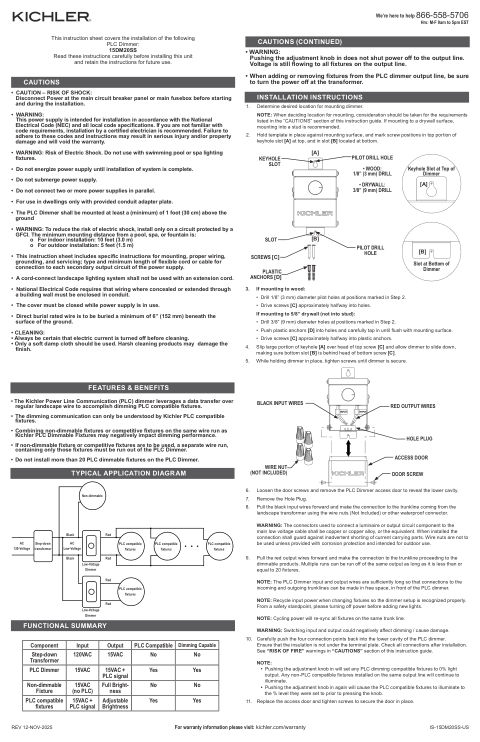

Instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Offers true dimming and consistent flicker-free performance, superior to phase-cut dimmers
- Controls up to 20 PLC dimming compatible fixtures
- Non-dimmable fixtures can go at the end of the same wire run, but will not dim or count toward the 20-fixture limit
- Safely combine PLC dimmable and non-dimmable fixtures on the same wire run with no loss of LED life
- Wires like a standard fixture: power in from the transformer, power out to the dimmed load
- Small form mounts discreetly in inconspicuous locations
- Stainless steel, transformer-style housing eliminates the need for a separate weatherproof box
| Brand | Kichler |
|---|---|
| Manufacturer part # | 15DM20SS |
| UPC | 783927082624 |
| Input voltage | 12 V |
| Operating voltage range | 9-15 V AC |
| Finish | Stainless Steel |
| Material | Stainless Steel |
| Wet location rated | Yes |
| Lead wire length | 4.5 in (11 cm) |
| Wire connectors | Wire nuts |
| Product dimensions | 3.37 × 3.12 × 5.62 in (9 × 8 × 14 cm), W × D × H |
| Weight | 1.5 lb (0.7 kg) |
| Capacity | Up to 20 PLC dimming compatible fixtures |
