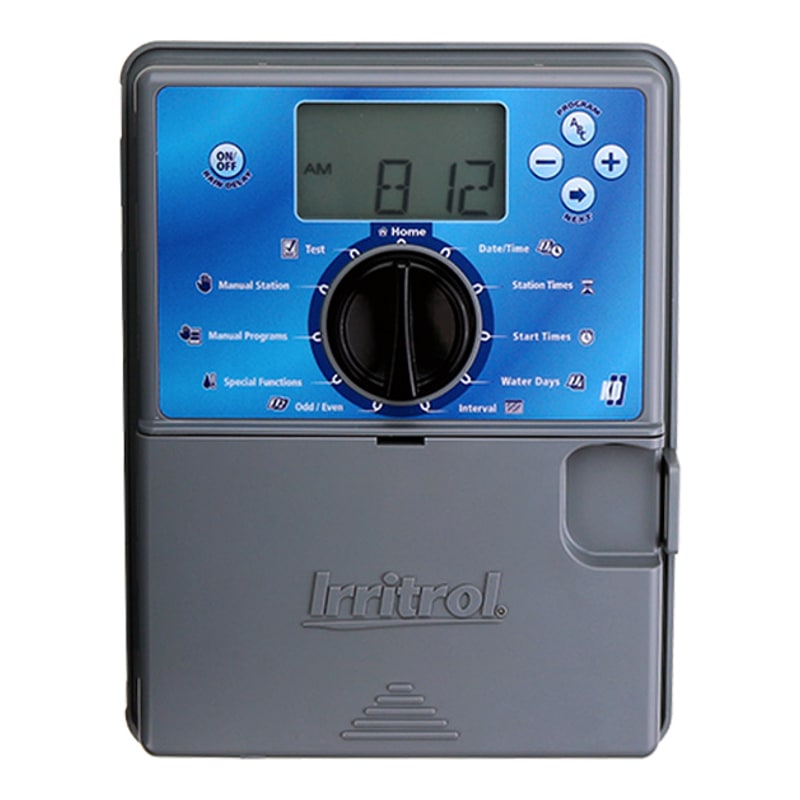

Toro - Irritrol 9-Station Kwik Dial 2, Outdoor Controller

9-station outdoor Kwik Dial 2 irrigation controller for residential zones

A residential controller from the Irritrol KD2 series that runs one station valve plus a master valve or pump start relay at a time. Three independent programs, a wide range of watering intervals and percentage seasonal adjustment give it scheduling room, and non-volatile memory keeps the program through a power loss.

Scheduling

• Days of the week, odd/even date with 31st day skip, or repeating intervals up to once every 31 days
• Excluded-day option with odd/even or day intervals
• Automatic, semi-automatic and manual operation

Protection

• Electronic circuit breaker finds and overrides a shorted valve or wire, then keeps watering the working stations
• Electrical surge protection and self-diagnostic function

Electrical

• 24 V ac, .4 amp per station and .8 amp total with the master valve
• 120 V ac transformer input, 24 V ac output

Pairs well with

• RS1000 Wireless RainSensor (IR-RS1000): wireless rain sensor for the controller sensor terminal
• RFS1000 Wireless Rain/Freeze Sensor (IR-RSF1000): adds freeze shutoff
• RS500 Wired RainSensor (IR-RS500): wired rain sensor
• SR-1 Pump Start Relay (IR-SR1): pump start relay for the master valve/pump circuit

5-year warranty. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
