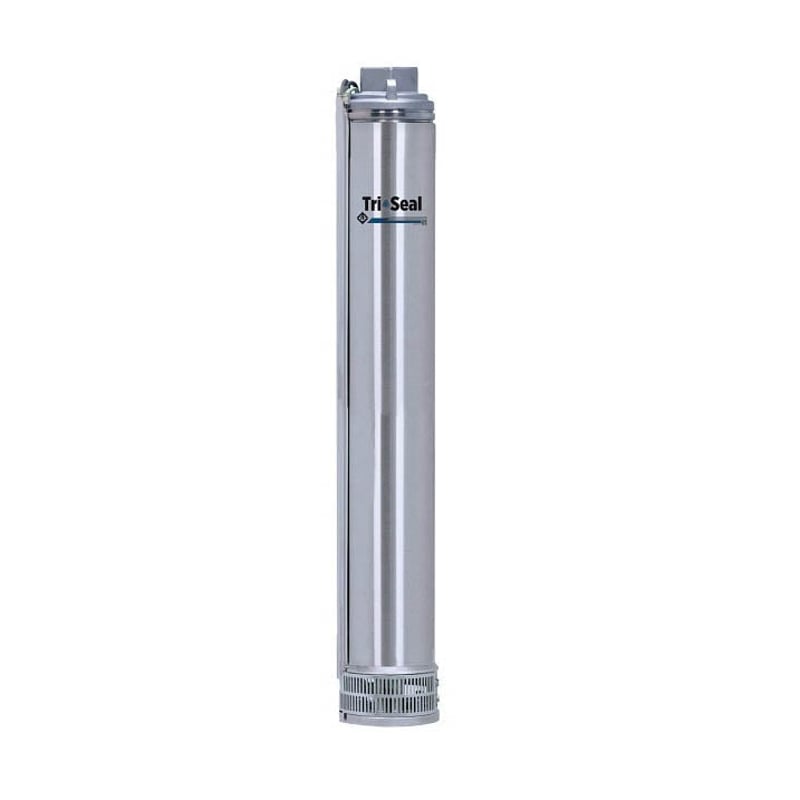

7gpm 1.5hp PEO 4" Legend Tri-Seal SS 7LD15S4-PE

Schur Legend 7 GPM 1.5 HP Stainless Steel 4″ Submersible Pump End — high-head deep-well pump end for residential supply.
OverviewThe Schur Legend 7LD15S4-PE is a 7 GPM, 1.5 HP stainless steel 4″ submersible pump end for residential wells where the aquifer yield is limited to 7 GPM but the total dynamic head is high, requiring a 1.5 HP motor to maintain pressure at the delivery point. The stainless steel construction provides durability in wells with moderately aggressive water chemistry or high mineral content.Stainless steel hydraulic body with the Legend Tri-Seal diffuser and impeller system for hydraulic efficiency. 4″ diameter for standard well casings. 1¼″ FNPT discharge. The 1.5 HP rating is specified for high-TDH applications such as very deep wells or systems with significant surface elevation difference. Match with a 1.5 HP 4″ submersible motor per Schur Legend compatibility tables; 3-wire motor with appropriate control box is typically required at this HP rating.
Specifications

GPM	7 GPM
HP (motor)	1.5 HP
Casing diameter	4″
Discharge	1¼″ FNPT
Body material	Stainless steel
Design	Legend Tri-Seal
Part No.	SCH-7LD15S4-PE
