RAIN BIRD INTERNATIONAL INC.
XF-SDI WITH HEAVY CHECK VALVE 0.9GPH 18" SPC 500FT
$573.93
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock

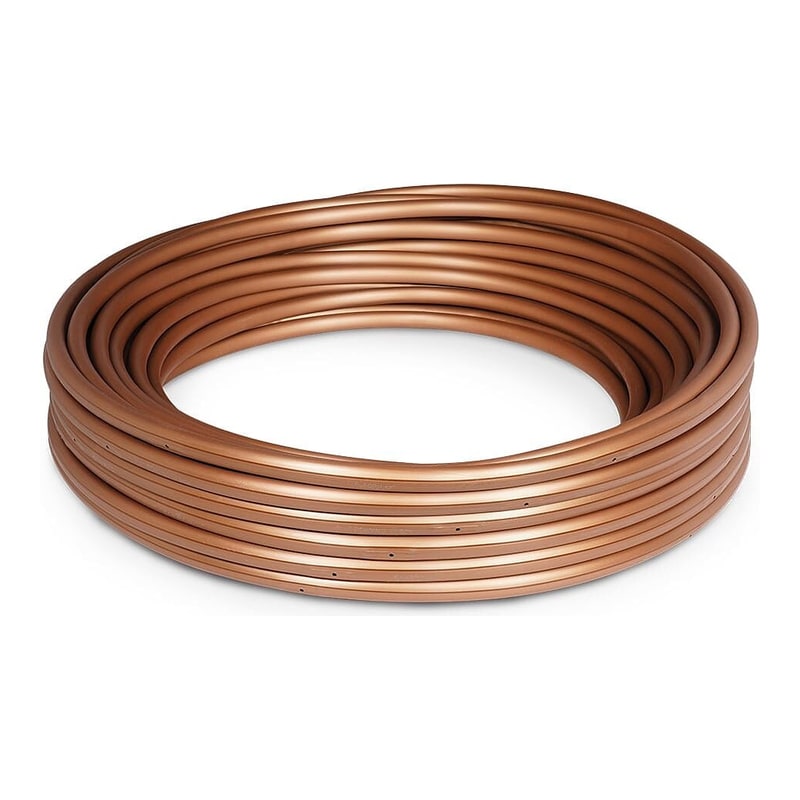

XFS-CV dripline with 4.3 psi check valve, 0.9 GPH, 18 in spacing, 500 ft coil
Copper Shield dripline with a heavy-duty 4.3 psi check valve in every emitter, for on-surface and sub-surface zones where elevation changes would otherwise drain the line. Each emitter puts out 0.9 GPH at 18 in spacing.
On slopes
- Keeps the dripline charged at all times, so no recharge at the start of each cycle
- Better uniformity and no puddling at the low point of the zone
- Copper Shield Technology protects each emitter from root intrusion with a pure copper chip
Build
1/2 in pressure-compensating tubing with a low-profile emitter that reduces pressure loss for longer laterals. Pressure range is 20 to 60 psi. Filter to 120 mesh, water up to 100 °F, ambient up to 125 °F. Accepts Easy Fit compression fittings, XF Dripline barbed insert fittings and other 17 mm barbed insert fittings.
Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Rain Bird’s patent-pending 4.3 psi check valve technology keeps the dripline charged with water at all times, increasing uniformity of watering, and conserves water by eliminating the need to recharge the line at the beginning of each watering cycle
- XFS-CV Sub-Surface Dripline emitters are protected from root intrusion by Rain Bird’s patent-pending Copper Shield™ Technology resulting in a system that does not require maintenance or replacement of chemicals to prevent root intrusion
- Rain Bird’s low-profile emitter design reduces in-line pressure loss, allowing longer lateral runs, simplifying design and reducing installation time
- Through the use of a proprietary tubing material, the XFS-CV Dripline with heavy-duty check valve is the most flexible dripline tubing in the industry, making it the easiest dripline to design with and install
- The pressure-compensating emitter design provides a consistent flow over the entire lateral length ensuring higher uniformity for increased reliability in the pressure range of 20 to 60 psi
- Dual-layered tubing (copper over black) provides unmatched resistance to chemicals, algae growth and UV damage
- Rain Bird’s proprietary emitter design resists clogging by use of an extra wide flow path combined with a self-flushing action
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | XFSCV0918500 |
| Flow rate | 0.9 GPH (3.5 L/h) |
| Emitter spacing | 18 in (46 cm) |
| Coil length | 500 ft (152.4 m) |
| Application | Hills and slopes, on surface and sub-surface |
| Check valve | Heavy-duty, 4.3 psi |
| Root protection | Copper Shield Technology |
| Tubing size | 1/2 in |
| Operating pressure | 20 to 60 psi (1.4 to 4.1 bar) |
| Opening pressure | 14.5 psi |
| Outside diameter | 0.634 in (16 mm) |
| Inside diameter | 0.536 in (13.6 mm) |
| Wall thickness | 0.049 in (1.2 mm) |
| Maximum water temperature | 100 °F (38 °C) |
| Maximum ambient temperature | 125 °F (52 °C) |
| Required filtration | 120 mesh |
| Fittings | XF Dripline insert fittings |
| Shipping weight | 18.9 lb |
