RAIN BIRD INTERNATIONAL INC.
Rain Bird - Xfs Dripline With Heavy Check Valve 0.9Gph 12" Spc 100Ft
$153.54
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideOut of stock
BurnabyIn stock
VancouverIn stock
LangleyOut of stock
CalgaryOut of stock

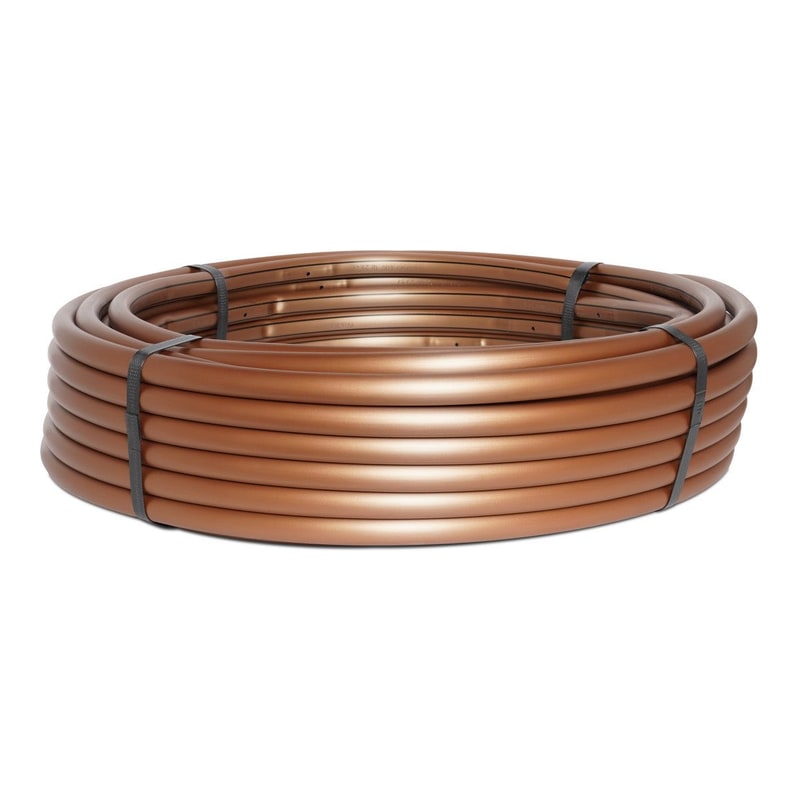

XFS-CV dripline with 4.3 psi check valve, 0.9 GPH, 12 in spacing, 100 ft coil
Copper Shield dripline with a heavy-duty 4.3 psi check valve in every emitter, for on-surface and sub-surface zones where elevation changes would otherwise drain the line. Each emitter puts out 0.9 GPH at 12 in spacing.
On slopes
- Holds back 10 ft of elevation change, the highest holdback in the industry
- Better uniformity and no puddling at the low point of the zone
- Copper Shield Technology protects each emitter from root intrusion with a pure copper chip
Build
1/2 in pressure-compensating tubing with a low-profile emitter that reduces pressure loss for longer laterals. Pressure range is 20 to 60 psi. Accepts Easy Fit compression fittings, XF Dripline barbed insert fittings and other 17 mm barbed insert fittings.
Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Rain Bird® XFS-CV Dripline with a heavy-duty 4.3 psi check valve for on-surface and sub-surface applications adds a valuable member to the Rain Bird XF Series of Dripline.
- The XFS-CV is the most effective dripline in the industry and is ideal for areas where no other dripline will work.
- When used in applications where elevation changes exist, the patent-pending check valve keeps the dripline charged, holding 10 feet of hold back - the highest holdback in the industry.
- Rain Bird's XFS-CV offers better uniformity and helps to prevent over-watering at the low-point in the zone, avoiding puddling and water draining from the dripline.
- With a pure copper chip inside every emitter, XFS-CV Dripline also offers the industry's most effective root intrusion protection.
- It accepts Rain Bird Easy Fit Compression Fittings, XF Dripline Barbed Insert Fittings and other 17 mm barbed insert fittings.
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | XFSCV0912100 |
| Flow rate | 0.9 GPH (3.5 L/h) |
| Emitter spacing | 12 in (30 cm) |
| Coil length | 100 ft (30.5 m) |
| Application | Hills and slopes, on surface and sub-surface |
| Check valve | Heavy-duty, 4.3 psi |
| Root protection | Copper Shield Technology |
| Tubing size | 1/2 in |
| Operating pressure | 20 to 60 psi (1.4 to 4.1 bar) |
| Shipping weight | 3.4 lb |
