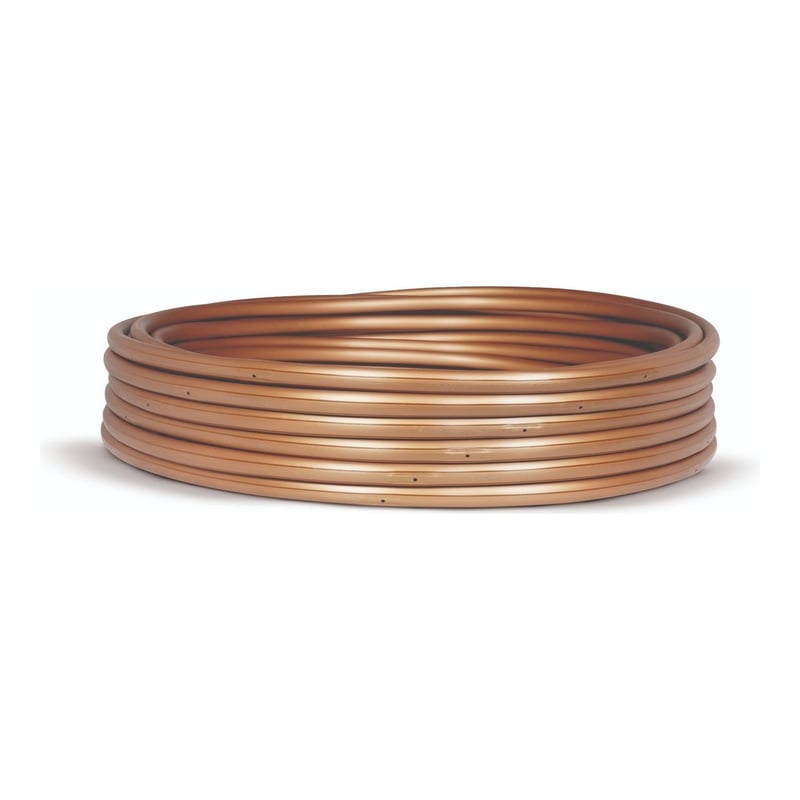

Rain Bird - Xfs Dripline With Heavy Check Valve 0.6Gph 18" Spc 250Ft

Rain Bird XFS-CV Subsurface Dripline, 0.6 GPH GPH — 18" emitter spacing with integrated check valves; drains below 4 PSI to prevent low-head drainage.
Overview Rain Bird XFS-CV combines the Copper Shield subsurface dripline with factory-installed check valves at each emitter. The check valves close when pressure drops below 4 PSI, preventing the line from draining after each irrigation cycle — a critical feature for sloped terrain where low-head drainage would saturate the lowest head on each zone and leave upper areas under-irrigated. Operating pressure: 20–60 PSI (higher minimum than non-CV due to check valve actuation). XFS-CV shares the same 0.634" OD and 0.049" wall construction as standard XFS, and is compatible with the same drip fittings, end caps, and flushing valves. Copper Shield root-intrusion protection is integral to all emitters. Requires 120-mesh minimum filtration upstream. Available in 0.6 GPH GPH at 18" spacing; select flow and spacing to match soil type and crop water demand. Particularly recommended for sloped drip installations, terraced beds, and systems where complete line drainage between cycles would cause puddling at low points.
Specifications

Emitter flow rate	0.6 GPH GPH
Emitter spacing	18"
Operating pressure	20–60 PSI
Check valve closing pressure	4 PSI
Outside diameter	0.634"
Wall thickness	0.049"
Root protection	Copper Shield
Filter requirement	120 mesh minimum
Part No.	RB-XFSCV0618500
