RAIN BIRD INTERNATIONAL INC.
Rain Bird - Xfs Dripline 0.6Gph 12" Spc 500Ft
$615.51
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaOut of stock
WestsideOut of stock
BurnabyIn stock
VancouverIn stock
LangleyIn stock
CalgaryOut of stock

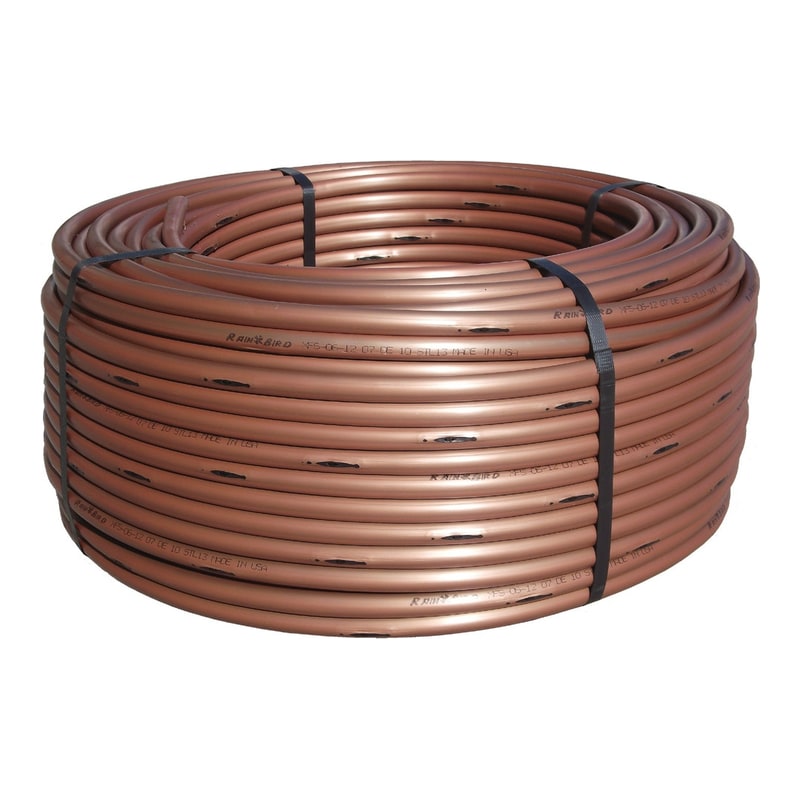

XFS sub-surface dripline with Copper Shield, 0.6 GPH, 12 in spacing, 500 ft coil
Copper-colored 1/2 in pressure-compensating dripline for sub-surface irrigation under turf, shrubs and groundcover, and it can also be used on the surface. Copper Shield Technology protects each emitter from root intrusion. Each emitter puts out 0.6 GPH at 12 in spacing.
Installation
- Extra-flexible tubing allows tighter turns with fewer elbows
- Low-profile emitter reduces pressure loss, allowing longer laterals
- Add an air/vacuum relief valve kit when installing below soil
- Accepts XF Dripline insert fittings, Easy Fit compression fittings and 17 mm insert fittings
Built to last
Dual-layered tubing resists chemicals, algae and UV damage. The wide flow path and self-flushing action resist clogging, and pressure compensation keeps flow even from 8.5 to 60 psi. Filter to 120 mesh, water up to 100 °F, ambient up to 125 °F.
Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Look for the shiny, metallic Copper color® tubing
- Patent-pending Copper Shield™ Technology protects emitters from root intrusion
- Unique material offers significantly greater flexibility, allowing tighter turns with fewer elbows for easier installation
- Low profile emitter design reduces in-line pressure loss, allowing longer lateral runs.
- Ideal for on-surface and sub-surface applications.
- Accepts Rain Bird Easy Fit Compression Fittings, XF Dripline Insert Fittings and 17mm insert fittings
- Use an Air/Vacuum Relief Valve Kit when installation is below soil
- Dual-layered tubing provides unmatched resistance to chemicals, algae growth and UV damage
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | XFS0612500 |
| Flow rate | 0.6 GPH (2.3 L/h) |
| Emitter spacing | 12 in (30 cm) |
| Coil length | 500 ft (152.4 m) |
| Application | On surface and sub-surface |
| Root protection | Copper Shield Technology |
| Tubing size | 1/2 in |
| Outside diameter | 0.634 in (16.1 mm) |
| Inside diameter | 0.536 in (13.6 mm) |
| Wall thickness | 0.049 in (1.2 mm) |
| Operating pressure | 8.5 to 60 psi (0.58 to 4.1 bar) |
| Maximum water temperature | 100 °F (38 °C) |
| Maximum ambient temperature | 125 °F (52 °C) |
| Required filtration | 120 mesh |
| Fittings | XF Dripline insert fittings, Easy Fit compression fittings or 17 mm insert fittings |
| Shipping weight | 20.6 lb |
