RAIN BIRD INTERNATIONAL INC.

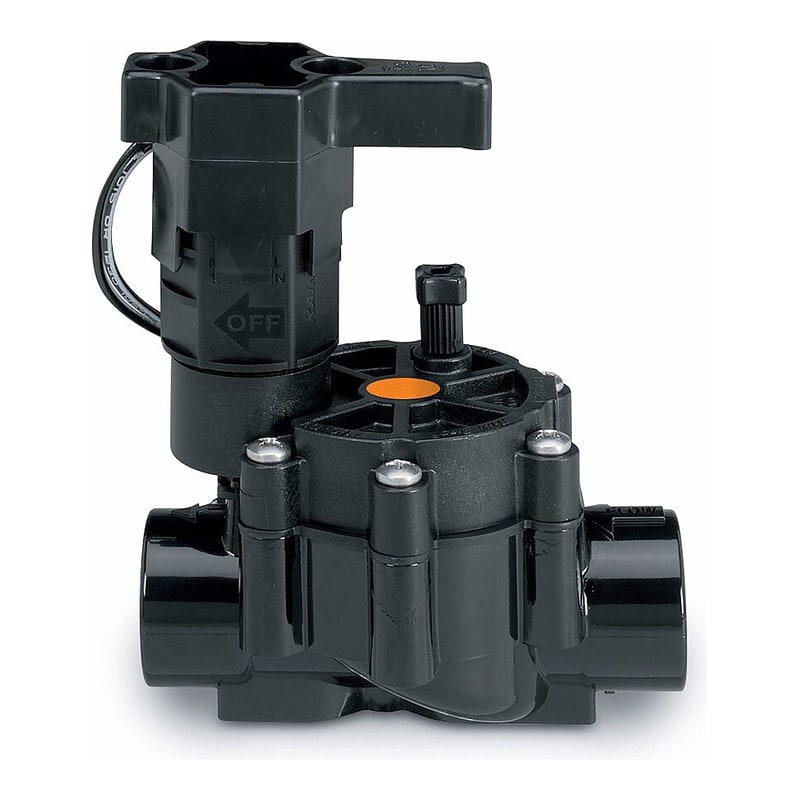

3/4" Low Flow Dv Control Valve
$75.66
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaOut of stock
WestsideOut of stock
BurnabyIn stock
VancouverIn stock
LangleyIn stock
CalgaryOut of stock
3/4 in low-flow drip control valve, 24 VAC
An in-line valve made for drip zones, where ordinary valves struggle at low flow. It passes particles at extremely low flow rates and resists weeping, so a drip zone can run anywhere from 0.20 to 10.0 GPM.
Why it suits drip
- Double-knife diaphragm with a 1/2 in seat for clean operation at low flow
- Handles all particle sizes, so the filter can sit downstream of the valve
- Double-filtered pilot flow design
Install and start-up
The external bleed flushes dirt and debris from the system at start-up, and the internal bleed allows spray-free manual operation. Rated 15 to 150 psi with a 24 VAC 50/60 Hz solenoid.
Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Allows the filter to be safely placed downstream of the valve since these valves handle all sizes of particles
- Unique “double-knife” diaphragm coupled with ½" diameter seat for flawless operation at low flow rates
- Low Flow Valve is available in ¾" In-line model
- Double-filtered pilot flow design for maximum reliability
- External bleed to manually flush the system of dirt and debris during installation and system start-up
- Internal bleed for spray-free manual operation
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | LFV075 |
| Size | 3/4 in |
| Valve type | Inline |
| Flow range | 0.20 to 10.0 GPM |
| Operating pressure | 15 to 150 psi (1.0 to 10.3 bar) |
| Voltage | 24 VAC 50/60 Hz solenoid |
| Inrush current | 0.30 A (7.2 VA) at 60 Hz |
| Holding current | 0.19 A (4.56 VA) |
| Thread options | Available with BSP threads |
| Shipping weight | 0.9 lb |
