RAIN BIRD INTERNATIONAL INC.
Rain Bird - FD 101 Field Decoder 1Sta 1Sol
$408.99
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideIn stock
BurnabyOut of stock
VancouverOut of stock
LangleyIn stock
CalgaryIn stock

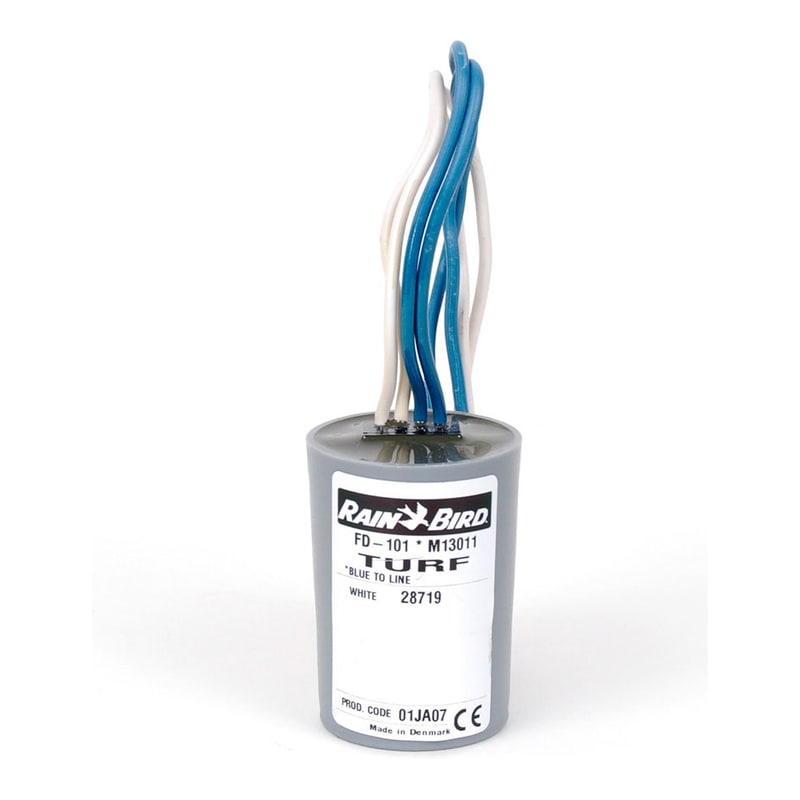

FD101TURF field decoder for one valve on ESP-LXD and SiteControl two-wire systems
A single-station decoder for Rain Bird two-wire systems. It is encapsulated and fully waterproof, so it can sit in a valve box or go direct burial, out of sight and protected from the weather and from vandals. The address is pre-coded at the factory, so there are no switches to set.
Wiring and load
- Blue wire to the cable, white wire to the solenoid
- Draws 0.5 mA idle and 18 mA per active solenoid
- Output power is adjustable from the controller
Why use it
- Enables advanced diagnostics and sensor features
- Rain Bird DB series wire connectors give the most reliable water-tight splices
Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Operates one automatic irrigation valve
- Fully waterproof; mount inside a valve box or direct burial
- Address pre-coded from the factory (no switches)
- Easy, cost-effective installation, expansion and upgrade for Rain Bird ESP-LXD and/or SiteControl two-wire decoder systems
- Installed out of sight and protected from the elements and vandalism
- Enables advanced diagnostics and sensor features
- Use with Rain Bird DB Series Wire Connectors for the most reliable, water-tight connections
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | FD101TURF |
| Valves operated | 1 (1 address, 1 solenoid per address) |
| Power draw | 0.5 mA idle, 18 mA per active solenoid |
| Output power | Adjustable from controller |
| Wires | Blue to cable, white to solenoid |
| Address | Pre-coded from the factory, no switches |
| Installation | Fully waterproof; mount inside a valve box or direct burial |
| Compatible systems | Rain Bird ESP-LXD and SiteControl two-wire decoder systems |
| Product dimensions | 2.77 in length × 1.5 in diameter (7 × 4 cm) |
| Shipping weight | 0.3 lb |
