RAIN BIRD INTERNATIONAL INC.
Rain Bird - Falcon 6504, Full Circle, Less Nozzle
$106.99
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideIn stock
BurnabyIn stock
VancouverIn stock
LangleyIn stock
CalgaryIn stock

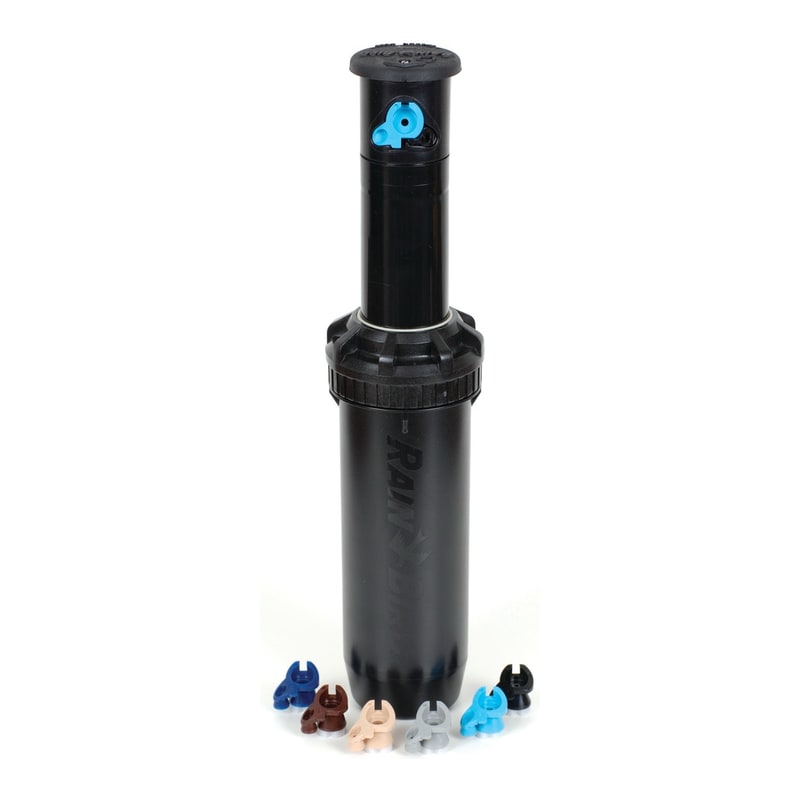

Falcon 6504 full-circle rotor, 39 to 65 ft radius, 1" inlet, sold less nozzle
A commercial rotor for parks, athletic fields, cemeteries and schools, with spacing up to 65 ft. Three-port Rain Curtain nozzles cover long range, mid-range and close-in, and a water-lubricated gear drive keeps rotation steady.
Sizing
- Radius 39 to 65 ft at 30 to 90 psi
- Flow 2.9 to 21.7 gpm, 1" female NPT or BSP inlet
- 4 in. pop-up to the nozzle centerline clears taller turf
Built for the field
- Removable SAM check device holds up to 10 ft of elevation change
- Small 2 in. exposed diameter suits play areas
- Nozzles change from the front with no special tools, and the stator self-adjusts
- Black rubber cover; a purple cover is optional for non-potable water

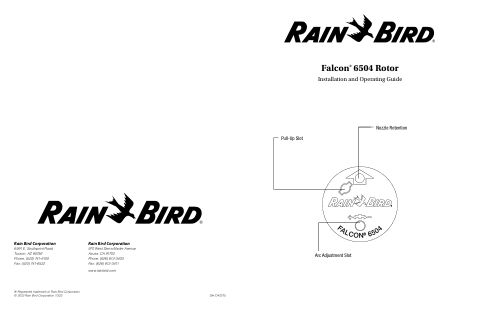

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Full-Circle Rotor Pop-up Sprinkler, Less Nozzle.
- Water-lubricated gear drive for reliable, durable rotation
- Heavy-duty, stainless steel retract spring ensures positive pop-down
- Standard black rubber cover or optional purple rubber cover for non-potable water
- Removable Seal-A-Matic™ (SAM) check device prevents puddling and erosion caused by low-head drainage
- Radius adjustment screw allows radius reduction up to 25% without changing nozzles.
- Small 2" (5.1 cm) exposed diameter reduces possibility of injury in play areas.
- 4" (10.2 cm) pop-up height to center line of nozzle clears taller turfgrass.
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | F4FC |
| Rotor series | Falcon 6504 |
| Arc | 360° full circle |
| Radius | 39 to 65 ft (11.9 to 19.8 m); radius adjustment screw reduces it up to 25% |
| Operating pressure | 30 to 90 psi |
| Flow rate | 2.9 to 21.7 gpm |
| Precipitation rate | 0.37 to 1.14 in/hr (9 to 29 mm/h) |
| Inlet | 1" female NPT or BSP, threaded |
| Check valve (SAM) | Seal-A-Matic, holds up to 10 ft (3.0 m) of elevation change |
| Pop-up height | 4 in (10 cm), to the center of the nozzle |
| Product dimensions | Overall height 8 1/2 in (22 cm); exposed surface diameter 2 in (5 cm) |
| Rain Curtain nozzle sizes | 10, 12, 14, 16 and 18, color-coded |
| Shipping weight | 1.1 lb |
