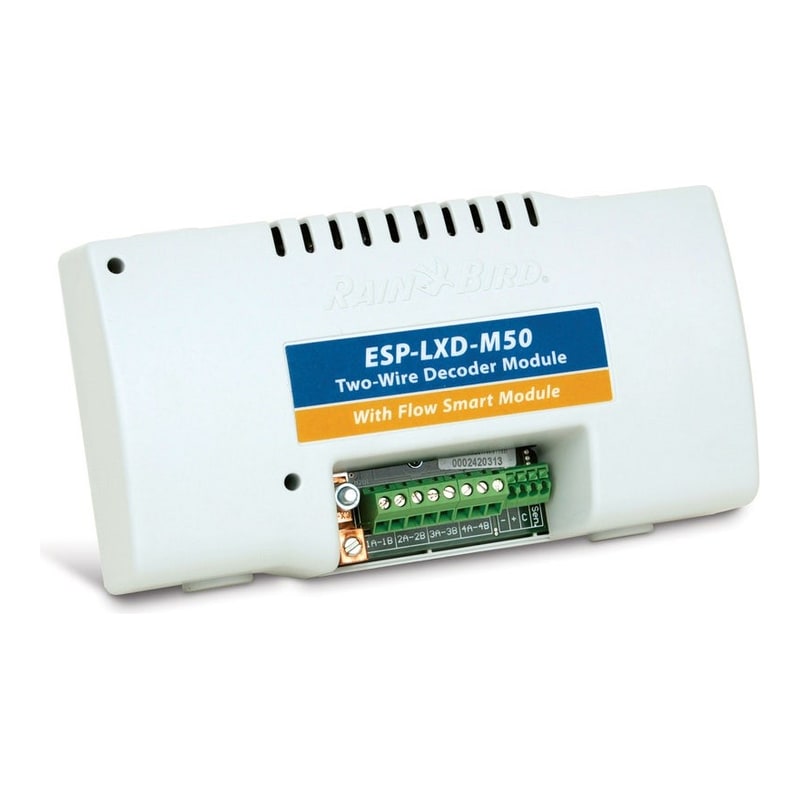

Rain Bird ESPLXDMOD50 50-Station 2-Wire Decoder Output Module for ESP-LX Controllers
OverviewThe Rain Bird ESPLXDMOD50 is a 50-station 2-wire decoder output module that adds 2-wire decoder capability to ESP-LX modular controllers. It installs in the ESP-LX controller cabinet and communicates with Rain Bird FD-TURF series field decoders at each valve location via a 2-wire path, supporting up to 50 decoder addresses per module. The module eliminates individual valve home-run wiring on large sites while maintaining full Rain Bird ESP-LX scheduling and monitoring features.The ESPLXDMOD50 mounts inside the ESP-LX controller cabinet and communicates with FD-TURF series field decoders at each valve via a 2-wire path. Decoder Auto-Address automatically assigns station addresses on commissioning. The module is compatible with ESP-LX modular controllers and integrates with the full ESP-LX scheduling, seasonal adjustment, and SimulStations hydraulic management features.
Specifications

Decoder addresses	50 stations per module
2-wire paths	Per ESP-LX controller capability
Field decoders	Rain Bird FD-TURF series
Address assignment	Decoder Auto-Address (automatic)
Compatible systems	ESP-LX modular controllers
Special wire required	No
