RAIN BIRD INTERNATIONAL INC.
Rain Bird - 8005 Part/Full Circle, Less Nozzle
$197.99
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideIn stock
BurnabyIn stock
VancouverIn stock
LangleyIn stock
CalgaryIn stock

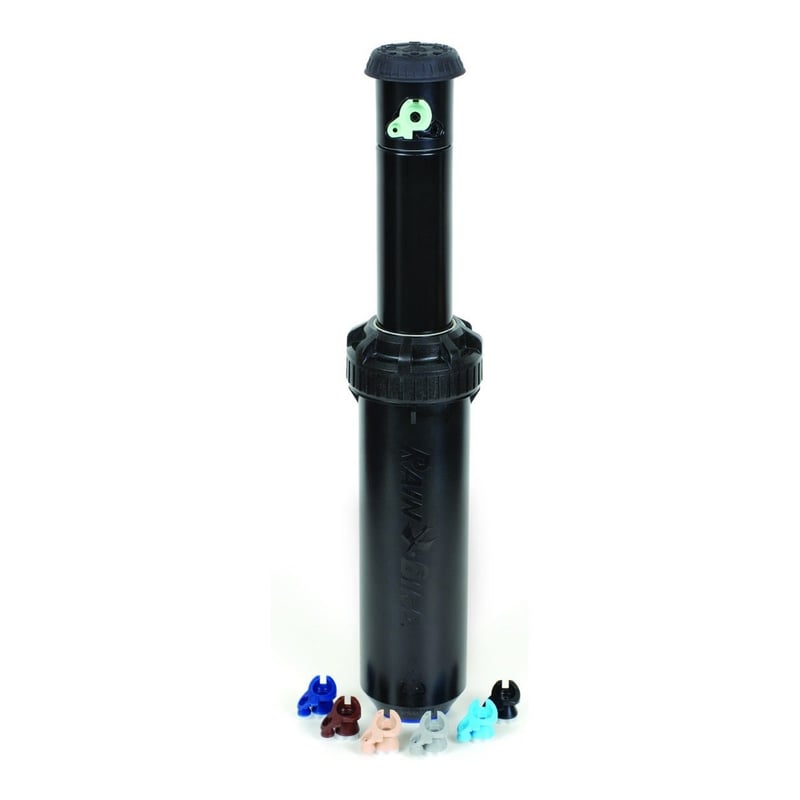

8005 commercial pop-up rotor, 39 to 81 ft radius, part or full circle
A vandal-resistant rotor for sports fields, parks and other large turf. Part circle from 50° to 330° or a non-reversing 360° full circle in one unit, so one model covers both. Rain Curtain nozzles give even distribution and gentle close-in watering.
Sizing
- Radius 39 to 81 ft at 50 to 100 psi
- Flow 3.8 to 36.3 gpm, 0.48 to 1.23 in/hr precipitation
- 1" NPT or BSP female inlet, 5 in. pop-up
Built for abuse
- Brass-reinforced turret and a non-strippable drive resist vandal kicks and twisting
- Memory Arc returns the rotor to its set arc
- SAM check device holds up to 10 ft of head to stop low-head drainage
- Adjust the arc through the top with a slotted screwdriver, wet or dry; side trips adjust without turning the case
- Nozzles swap from the front with no special tools
Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Memory Arc® returns the rotor to its original arc setting
- Non-strippable drive mechanism prevents damage from vandals
- Brass reinforcing shaft of the nozzle turret to riser withstands vandal kick
- Full and part circle operation in one unit to reduce inventory requirements
- Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection
- Seal-A-Matic™ (SAM) check device/riser to help prevent low head drainage
- Water-lubricated gear drive
- Rain Curtain™ nozzles for optimal distribution and close-in watering resulting in superior uniformity
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | 8005 |
| Rotor series | 8005 commercial pop-up rotor |
| Arc | Part circle 50° to 330°, or 360° non-reversing full circle |
| Radius | 39 to 81 ft (11.9 to 24.7 m) |
| Operating pressure | 50 to 100 psi |
| Flow rate | 3.8 to 36.3 gpm |
| Precipitation rate | 0.48 to 1.23 in/hr (12 to 31 mm/h) |
| Nozzle trajectory | 25° |
| Inlet | 1" NPT or BSP female, threaded |
| Check valve (SAM) | Seal-A-Matic, holds up to 10 ft (3.0 m) of head |
| Pop-up height | 5 in (13 cm) |
| Product dimensions | Overall height 10 1/8 in (26 cm); overall diameter 3 1/8 in (8 cm); exposed diameter 1 7/8 in (5 cm) |
| Cap | Standard rubber cap, black |
| Shipping weight | 1.6 lb |
