RAIN BIRD INTERNATIONAL INC.

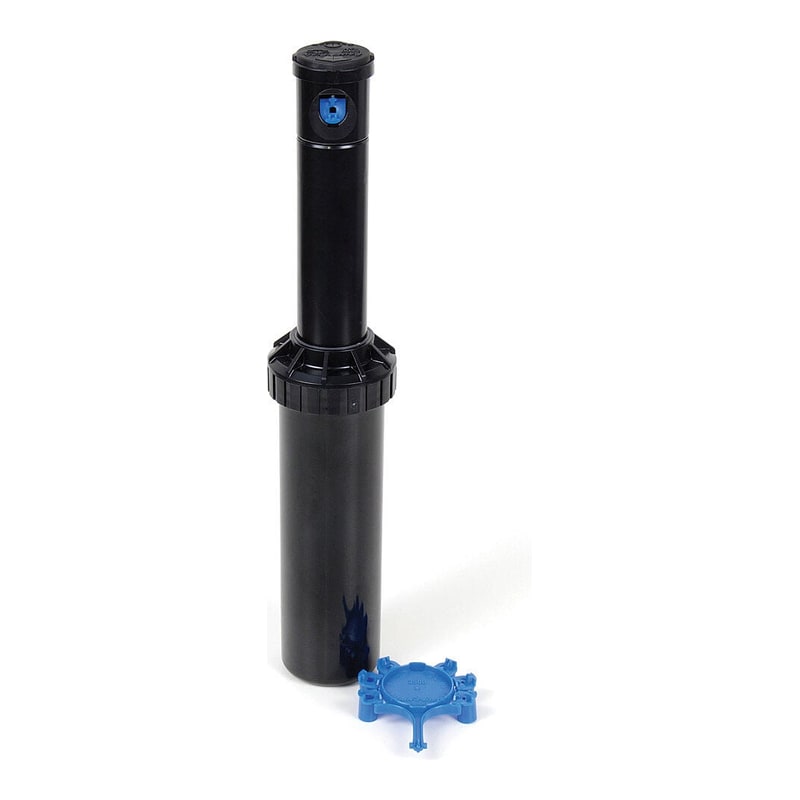

Rain Bird - 3504 Series, 4" Part/Reverse Full Circle W/Sam Rotor Sprinkler
$41.99
List price, excluding tax
Buy more, pay less
1+
$41.99
each
3+
$37.79
−10%
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideIn stock
BurnabyOut of stock
VancouverIn stock
LangleyIn stock
CalgaryIn stock
4" 3500 Series part-circle gear-drive rotor with SAM check valve
The compact 3500 rotor with a built-in Seal-A-Matic check valve, so low heads on a slope do not drain. It holds up to 7 ft of elevation change. Arc sets from the top with a flat-blade screwdriver, anywhere from 40° to 360°.
Sizing
- Radius 15 to 35 ft at 25 to 55 psi, trimmed up to 25% with the reduction screw
- Flow 0.54 to 4.6 gpm, 0.37 to 0.83 in/hr precipitation
- 25° nozzle trajectory
On the job
- 1/2" NPT female bottom inlet
- Rain Curtain nozzles give even coverage with large droplets that resist wind
- Oversized wiper seal keeps grit out of the internals
Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
- Oversized wiper seal prevents leaks and protects internals from debris
- Arc adjustment through the top of the rotor requiring only a flat-blade screwdriver
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | 3504PCSAM |
| Rotor series | 3500 Series, 1/2" gear drive |
| Pop-up height | 4 in (10 cm) |
| Arc | Part circle, reversing, 40° to 360° |
| Radius | 15 to 35 ft (4.6 to 10.7 m), reducible up to 25% with the radius reduction screw |
| Operating pressure | 25 to 55 psi |
| Flow rate | 0.54 to 4.6 gpm |
| Precipitation rate | 0.37 to 0.83 in/hr (9 to 21 mm/h) |
| Nozzle trajectory | 25° |
| Check valve (SAM) | Seal-A-Matic, holds up to 7 ft (2.1 m) of elevation change |
| Inlet | 1/2" NPT female, bottom |
| Shipping weight | 0.3 lb |
