RAIN BIRD INTERNATIONAL INC.
PART/FULL CIRCLE MAXI-PAW
$80.22
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaOut of stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock

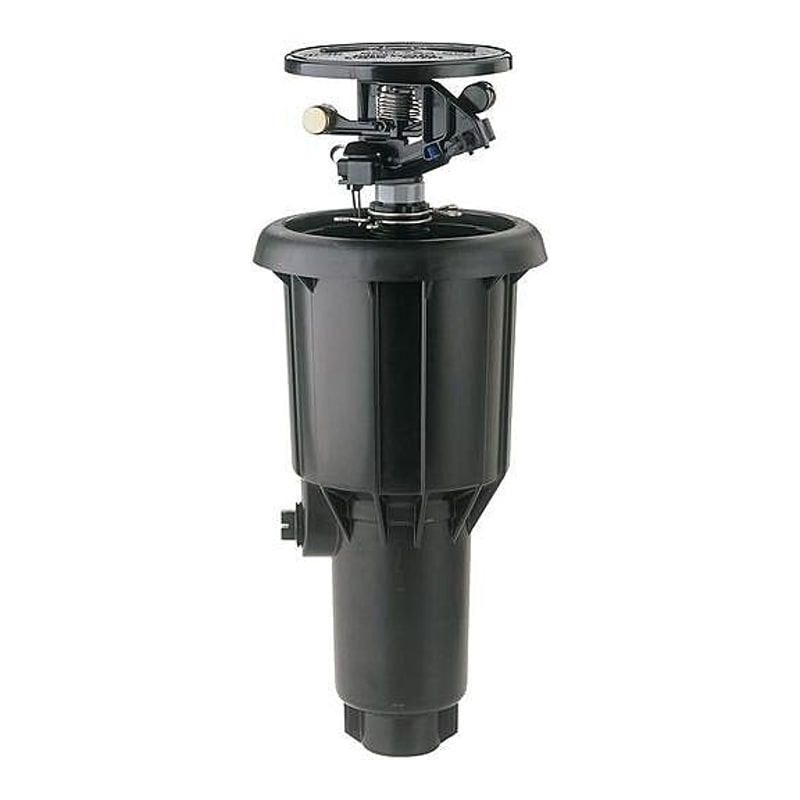

Maxi-Paw pop-up impact rotor, full or part circle, 22 to 45 ft radius
A pop-up impact head for large areas and dirty water. The straight-through flow path keeps pressure loss low, and a double-weighted arm slows rotation for more throw. The blue #08 nozzle is installed.
Sizing
- Radius 22 to 45 ft by nozzle, 18 ft with the radius reduction screw
- 25 to 60 psi, 1.5 to 8.4 gpm
- Full circle, or part circle from 20° to 340°
Installation
- Bottom inlet takes 1/2" or 3/4" FPT, and there is a 1/2" FPT side inlet. Side inlet is not recommended in freezing climates
- Five color-coded MPR nozzles and two low-angle nozzles are sold separately, changed with no tools
- Serviceable through the top of the case
Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Deluxe Impact Rotor Pop-Up Sprinkler
- Straight-through flow for superior performance in dirty water
- Combination 1/2" or 3/4" bottom inlet and 1/2" NPT side female connections offer more installation flexibility.
- Blue #8 nozzle included
- Double-weighted arm for slower rotation and increased distance of throw
- Self-flushing inner trip with improved inner trip lever
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | B0690008 |
| Rotor series | Maxi-Paw impact rotor, pop-up |
| Arc | Full circle, or part circle adjustable 20° to 340° |
| Radius | 22 to 45 ft (6.7 to 13.7 m); 18 ft (5.5 m) with the radius reduction screw |
| Operating pressure | 25 to 60 psi |
| Flow rate | 1.5 to 8.4 gpm |
| Precipitation rate | 0.28 to 1.17 in/hr (7 to 30 mm/h) |
| Nozzle included | Blue #08, standard trajectory |
| Nozzle trajectory | 23° (standard), 11° (low angle) |
| Inlet | Bottom: 1/2" or 3/4" FPT combination; side: 1/2" FPT |
| Pop-up height | 3 in (8 cm) |
| Product dimensions | Overall height 9 3/10 in (24 cm); exposed surface diameter 5 in (13 cm) |
| Shipping weight | 1.1 lb |
