RAIN BIRD INTERNATIONAL INC.
Peb 2" Electric Valve W/Integrated Valve Module (Ivm-Sol) Preinstalled
$846.25
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaOut of stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock

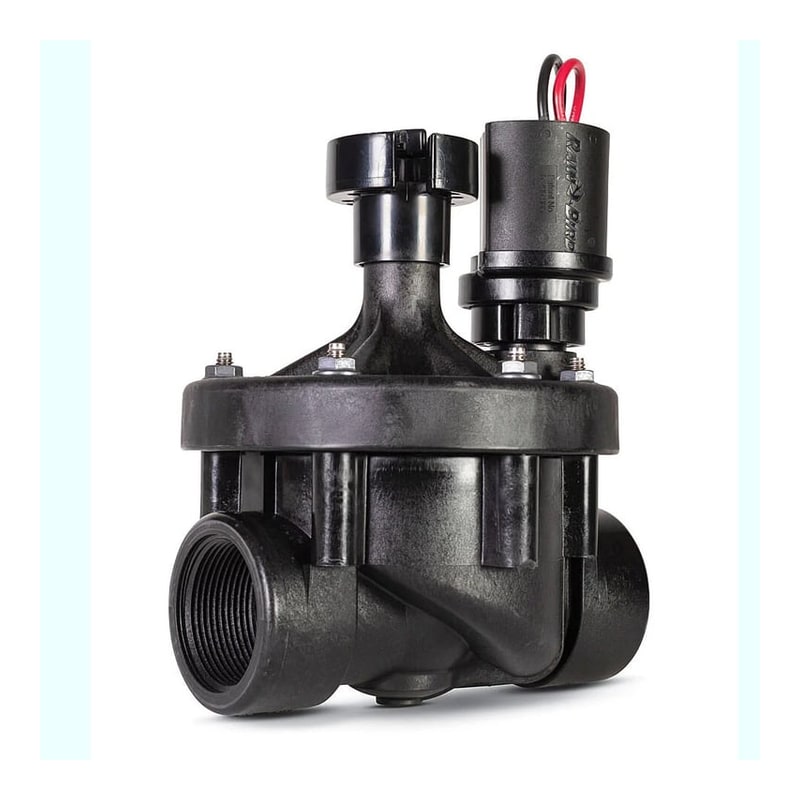

Rain Bird 2" PEB-IVM electric valve with IVM-SOL smart solenoid, for two-wire systems
A Rain Bird PEB-IVM valve with the Integrated Valve Module (IVM-SOL) smart solenoid already installed. Paired with the ESP-LXIVM two-wire controller it removes the decoders, giving 50% fewer wire splices, and it talks both ways with the controller for diagnostics and faster response.
Sizing
- 2" valve, 20 to 200 psi (1.38 to 13.80 bar)
- Flow 0.25 to 200 gpm (0.06 to 45.40 m³/h), or 5 to 200 gpm with the PRS-D module
- 26.5 Vrms, 50/60 Hz, 15.6 to 29.2 Vrms range
Built for service
- Glass-filled nylon body with stainless steel studs
- One-piece solenoid and slow closing to prevent water hammer
Options (order separately)
- PRS-D pressure regulating module, field installed
- Purple flow control handle for non-potable water: PEB-NP-HAN2
Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Glass-filled nylon body for long life and heavy-duty performance at 200 psi (13.80 bar)
- Stainless steel studs molded into the body, so the bonnet goes on and off without damaging threads
- One-piece solenoid with captured plunger and spring for easy servicing, and no lost parts in the field
- External bleed protects the solenoid ports from debris when the system is flushed
- Internal bleed operates the valve without letting water into the valve box, and lets you adjust the pressure regulator without turning the valve on at the controller
- Low flow operation from 0.25 gpm (0.06 m³/h; 1.2 L/min). Below 5 gpm (1.14 m³/h; 19.2 L/min) or on any Xerigation application, install a Rain Bird Y filter upstream
- Slow closing to prevent water hammer
- Accepts an optional, field-installed PRS-D pressure regulating module (order separately)
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | 200PEBIVM |
| Type | Electric valve with preinstalled IVM-SOL smart solenoid |
| Size | 2" |
| Controller | ESP-LXIVM two-wire (LXIVM compatible) |
| Pressure | 20 to 200 psi (1.38 to 13.80 bar) |
| Flow | 0.25 to 200 gpm (0.06 to 45.40 m³/h; 1.2 to 757 L/min) |
| Flow with PRS-D | 5 to 200 gpm (1.14 to 45.40 m³/h; 19.2 to 757 L/min) |
| Maximum temperature | 150 °F (66 °C) |
| Power | 26.5 Vrms, 50/60 Hz |
| Voltage range | 15.6 to 29.2 Vrms |
| Inrush current | Under 40 mA (peak) |
| Quiescent current | Under 0.4 mA (average) |
| Body | Glass-filled nylon |
| Dimensions (H × L × W) | 8 × 6 × 6 in (20 × 15 × 15 cm) |
| Shipping weight | 3.4 lb |
