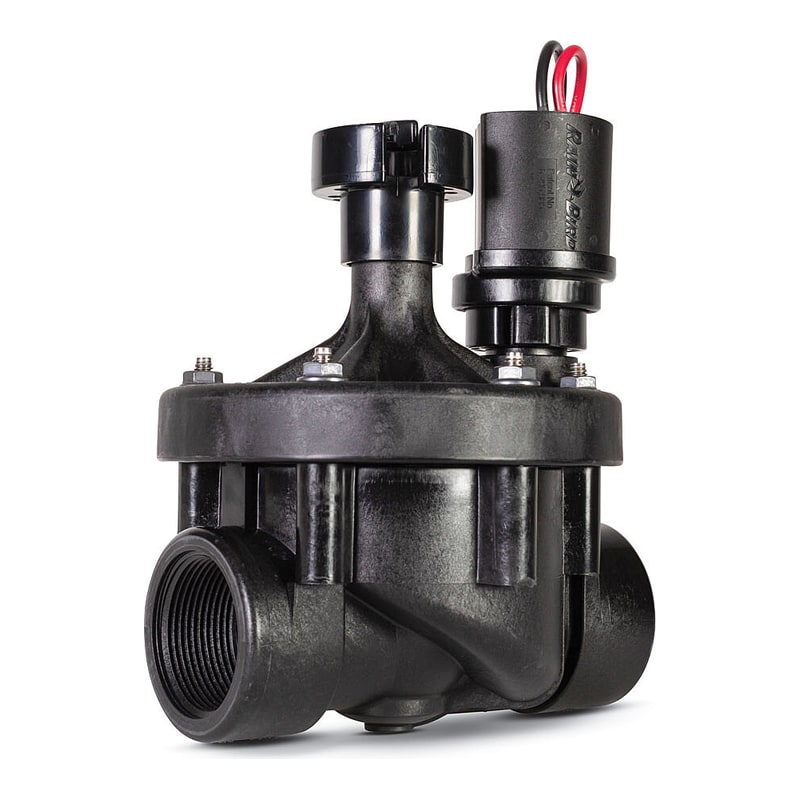

Rain Bird PESB 1-1/2" Solenoid Valve with IVM-SOL Module Pre-Installed, 24 VAC
OverviewRain Bird PESB Series solenoid valve with fiber-reinforced nylon body, external flow control, and dual Scrubber technology: a debris-flushing mechanism at every cycle plus a full-port flow path for reduced pressure drop. 24 VAC coil; five-year warranty.IVM (Integrated Valve Module) version arrives with a Rain Bird IVM-SOL solenoid module pre-installed — enabling direct integration with Rain Bird two-wire decoders and smart-control systems without additional field wiring of the module. 20–150 PSI; 24 VAC; five-year warranty.
Specifications
OverviewRain Bird PESB Series solenoid valve with fiber-reinforced nylon body, external flow control, and dual Scrubber technology: a debris-flushing mechanism at every cycle plus a full-port flow path for reduced pressure drop. 24 VAC coil; five-year warranty.IVM (Integrated Valve Module) version arrives with a Rain Bird IVM-SOL solenoid module pre-installed — enabling direct integration with Rain Bird two-wire decoders and smart-control systems without additional field wiring of the module. 20–150 PSI; 24 VAC; five-year warranty.
Specifications
| Size | 1-1/2" |
| Connection | Female NPT × Female NPT |
| Body Material | Fiber-reinforced nylon |
| Pressure Rating | 20–150 PSI |
| Solenoid | 24 VAC + IVM-SOL module pre-installed |
| Flow Control | External, adjustable |
| Scrubber | Enhanced |
| Warranty | 5 years |
- Glass-filled nylon body for long life and heavy-duty performance at 200 psi (13.80 bar)
- Stainless steel studs molded into the body, so the bonnet goes on and off without damaging threads
- One-piece solenoid with captured plunger and spring for easy servicing, and no lost parts in the field
- External bleed protects the solenoid ports from debris when the system is flushed
- Internal bleed operates the valve without letting water into the valve box, and lets you adjust the pressure regulator without turning the valve on at the controller
- Low flow operation from 0.25 gpm (0.06 m³/h; 1.2 L/min). Below 5 gpm (1.14 m³/h; 19.2 L/min) or on any Xerigation application, install a Rain Bird Y filter upstream
- Slow closing to prevent water hammer
- PESB-IVM only: the scrubber scrapes its stainless steel screen clean to break down grit and plant material and prevent clogging
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | 150PESBIVM |
| Type | Electric valve with preinstalled IVM-SOL smart solenoid, with scrubber |
| Controller | ESP-LXIVM two-wire (LXIVM compatible) |
| Pressure | 20 to 200 psi (1.38 to 13.80 bar) |
| Flow | 0.25 to 200 gpm (0.06 to 45.40 m³/h; 1.2 to 757 L/min) |
| Flow with PRS-D | 5 to 200 gpm (1.14 to 45.40 m³/h; 19.2 to 757 L/min) |
| Maximum temperature | 150 °F (66 °C) |
| Power | 26.5 Vrms, 50/60 Hz |
| Voltage range | 15.6 to 29.2 Vrms |
| Inrush current | Under 40 mA (peak) |
| Quiescent current | Under 0.4 mA (average) |
| Body | Glass-filled nylon |
| Dimensions (H × L × W) | 8 × 6 × 6 in (20 × 15 × 15 cm) |
| Shipping weight | 3.4 lb |
