RAIN BIRD INTERNATIONAL INC.
Peb 1.5" Electric Valve W/Integrated Valve Module (Ivm-Sol) Preinstalled
$724.92
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaOut of stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock

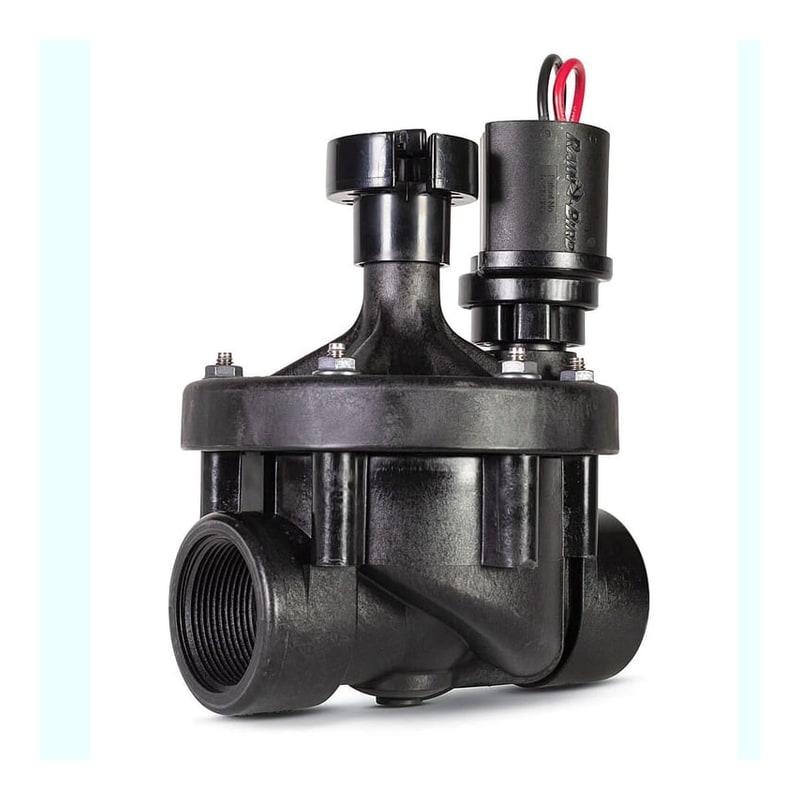

Rain Bird PEB 1-1/2" Solenoid Valve with IVM-SOL Module Pre-Installed, 24 VAC
OverviewRain Bird PEB Series solenoid valve with a fiber-reinforced nylon body, external flow control, and the patented Rain Bird Scrubber mechanism that uses a burst of high-velocity water to flush debris off the diaphragm and seat at every opening. 24 VAC coil; five-year warranty.IVM (Integrated Valve Module) version arrives with a Rain Bird IVM-SOL solenoid module pre-installed — enabling direct integration with Rain Bird two-wire decoders and smart-control systems without additional field wiring of the module. 20–150 PSI; 24 VAC; five-year warranty.
Specifications
OverviewRain Bird PEB Series solenoid valve with a fiber-reinforced nylon body, external flow control, and the patented Rain Bird Scrubber mechanism that uses a burst of high-velocity water to flush debris off the diaphragm and seat at every opening. 24 VAC coil; five-year warranty.IVM (Integrated Valve Module) version arrives with a Rain Bird IVM-SOL solenoid module pre-installed — enabling direct integration with Rain Bird two-wire decoders and smart-control systems without additional field wiring of the module. 20–150 PSI; 24 VAC; five-year warranty.
Specifications
| Size | 1-1/2" |
| Connection | Female NPT × Female NPT |
| Body Material | Fiber-reinforced nylon |
| Pressure Rating | 20–150 PSI |
| Solenoid | 24 VAC + IVM-SOL module pre-installed |
| Flow Control | External, adjustable |
| Scrubber | Yes |
| Warranty | 5 years |
- Glass-filled nylon body for long life and heavy-duty performance at 200 psi (13.80 bar)
- Stainless steel studs molded into the body, so the bonnet goes on and off without damaging threads
- One-piece solenoid with captured plunger and spring for easy servicing, and no lost parts in the field
- External bleed protects the solenoid ports from debris when the system is flushed
- Internal bleed operates the valve without letting water into the valve box, and lets you adjust the pressure regulator without turning the valve on at the controller
- Low flow operation from 0.25 gpm (0.06 m³/h; 1.2 L/min). Below 5 gpm (1.14 m³/h; 19.2 L/min) or on any Xerigation application, install a Rain Bird Y filter upstream
- Slow closing to prevent water hammer
- Accepts an optional, field-installed PRS-D pressure regulating module (order separately)
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | 150PEBIVM |
| Type | Electric valve with preinstalled IVM-SOL smart solenoid |
| Controller | ESP-LXIVM two-wire (LXIVM compatible) |
| Pressure | 20 to 200 psi (1.38 to 13.80 bar) |
| Flow | 0.25 to 200 gpm (0.06 to 45.40 m³/h; 1.2 to 757 L/min) |
| Flow with PRS-D | 5 to 200 gpm (1.14 to 45.40 m³/h; 19.2 to 757 L/min) |
| Maximum temperature | 150 °F (66 °C) |
| Power | 26.5 Vrms, 50/60 Hz |
| Voltage range | 15.6 to 29.2 Vrms |
| Inrush current | Under 40 mA (peak) |
| Quiescent current | Under 0.4 mA (average) |
| Body | Glass-filled nylon |
| Dimensions (H × L × W) | 8 × 6 × 6 in (20 × 15 × 15 cm) |
| Shipping weight | 3.4 lb |
