RAIN BIRD INTERNATIONAL INC.

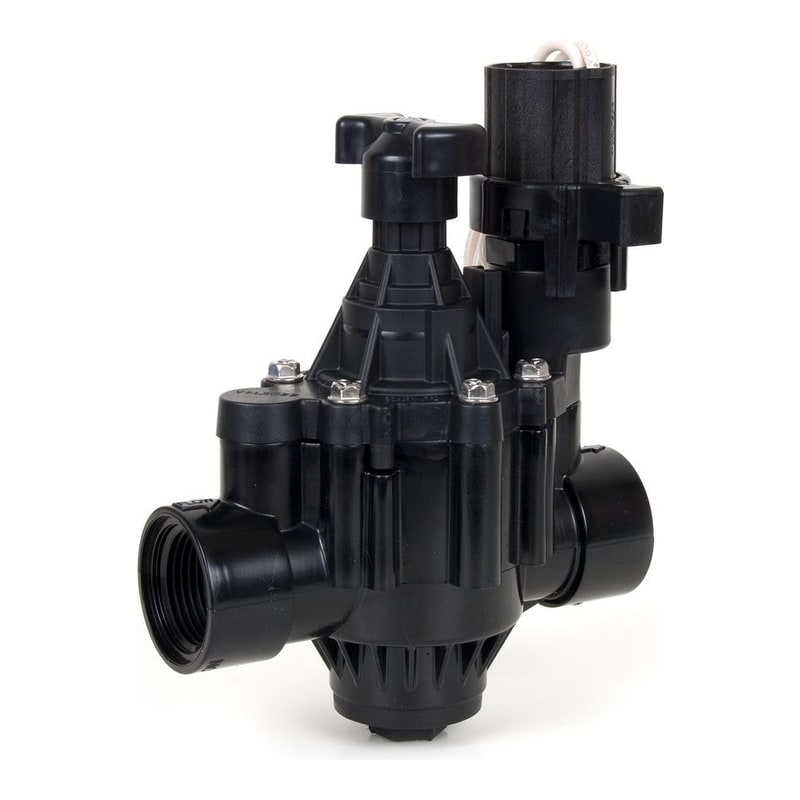

Pga Series, 1" Electric Valve 24Vac Globe/Angle Configuration
$76.96
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideIn stock
BurnabyIn stock
VancouverIn stock
LangleyIn stock
CalgaryIn stock
1" PGA plastic irrigation valve for residential and light commercial zones
A 1" female NPT valve that mounts as globe or angle, for the higher end of residential work and light commercial. Normally closed, forward flow, 15 to 150 psi, 24 VAC solenoid.
Sizing
- Flow: 2 to 150 gpm, or 5 to 150 gpm with a PRS-D dial fitted
- Water up to 110°F
- Solenoid draws 0.41 A inrush and 0.14 A holding
Installer features
- Water-tight body-to-bonnet seal
- Filtered pilot flow resists debris and clogging
- Internal bleed operates the valve without water in the valve box, and lets you adjust a regulator without starting the zone
- One-piece solenoid with captured plunger and spring
- Accepts a latching solenoid for Rain Bird battery-operated controllers
- The solenoid handle is not included
Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Water-tight seal between the body and bonnet for maximum confidence, even in the most extreme conditions
- Filtered pilot flow to resist debris and clogging
- Slow closing to prevent water hammer and subsequent system damage
- Accommodates optional, field-installed PRS-D pressure regulating dial to ensure optimum sprinkler performance.
- Accepts latching solenoid for use with Rain Bird battery-operated controllers.
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | 100PGA |
| Valve size | 1" |
| Valve type | Inline, globe/angle |
| Material | Plastic (PVC and glass-filled nylon) |
| Connection | NPT female × NPT female |
| Valve series | PGA |
| Operating pressure | 15 to 150 psi |
| Flow range without PRS-D | 2 to 150 gpm |
| Flow range with PRS-D | 5 to 150 gpm |
| Water temperature | Up to 110°F (43°C) |
| Solenoid power | 24 VAC, 50/60 Hz |
| Inrush current | 0.41 A (9.9 VA) |
| Holding current | 0.14 A (3.43 VA) |
| Solenoid coil resistance | 30 to 39 ohms |
| Product dimensions | 7 1/4 × 5 1/2 × 3 1/4 in (18 × 14 × 8 cm) |
| Shipping weight | 1.7 lb |
