RAIN BIRD INTERNATIONAL INC.
Dv Series, 1" Electric Valve 24Vac F X F - Rain Bird
$39.89
List price, excluding tax
Buy more, pay less
1+
$39.89
each
3+
$35.90
−10%
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideIn stock
BurnabyIn stock
VancouverIn stock
LangleyIn stock
CalgaryIn stock

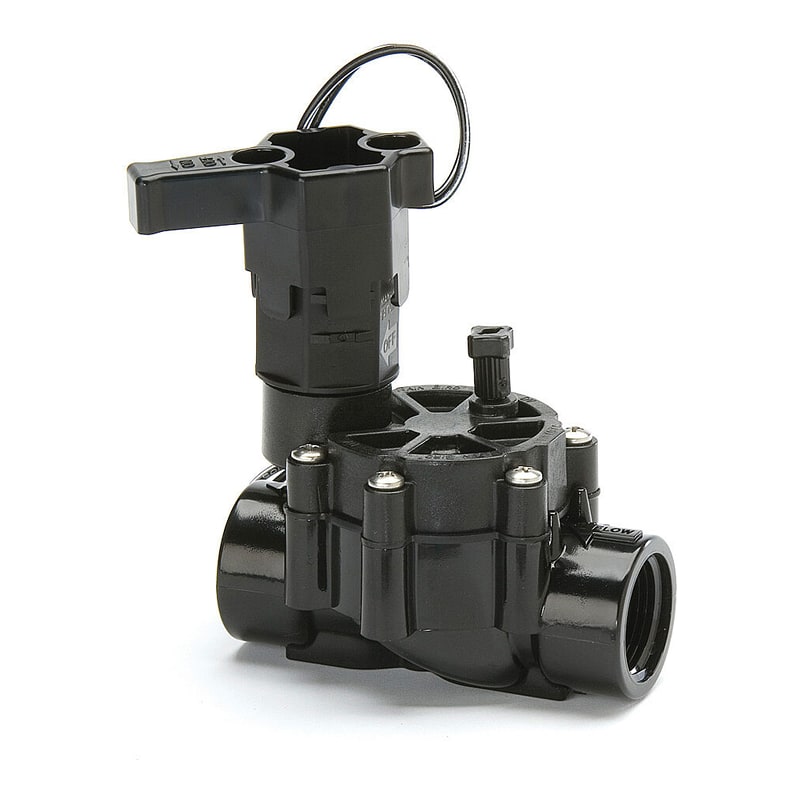

1" DV residential irrigation valve, female NPT × female NPT, 24 VAC
An inline diaphragm zone valve for residential sprinkler systems, with 1" female NPT threads on both ends. It runs from any standard 24 VAC timer and handles 0.2 to 40 gpm at 15 to 150 psi.
On the job
- Double-filtered pilot flow: a 90 mesh (200 micron) screen on both the diaphragm and the solenoid
- External bleed to flush debris at start-up, internal bleed for spray-free manual operation
- Takes a Rain Bird TBOS latching solenoid for battery-operated controllers
- Use it where code calls for a separate pressure vacuum breaker or double-check valve
Before you order
- Below 3 gpm, or on drip zones, install a 200 mesh filter upstream
- PRS pressure regulating modules cannot be used with this valve
- Not for two-wire systems, except ESP-LXIVM with the IVMSOL
Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance
- Buna-N, balanced pressure diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
- External bleed to manually flush the system of dirt and debris during installation and system start-up
- Internal bleed for spray-free manual operation
- Accepts Rain Bird TBOS latching solenoid for use with most battery-operated controllers
- Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
| Brand | Rain Bird |
|---|---|
| Manufacturer part # | 100DV |
| Valve size | 1" |
| Valve type | Inline, DV series residential |
| Connection | NPT female × NPT female |
| Operating pressure | 15 to 150 psi |
| Flow range | 0.2 to 40 gpm |
| Water temperature | Up to 110°F (43°C) |
| Ambient air temperature | Up to 125°F (52°C) |
| Solenoid power | 24 VAC, 50/60 Hz |
| Inrush current | 0.450 A |
| Holding current | 0.25 A |
| Solenoid coil resistance | 38 ohms |
| Product dimensions | 4 1/2 × 3 1/3 × 4 3/8 in (11 × 8 × 11 cm), H × W × L |
| Shipping weight | 1 lb |
