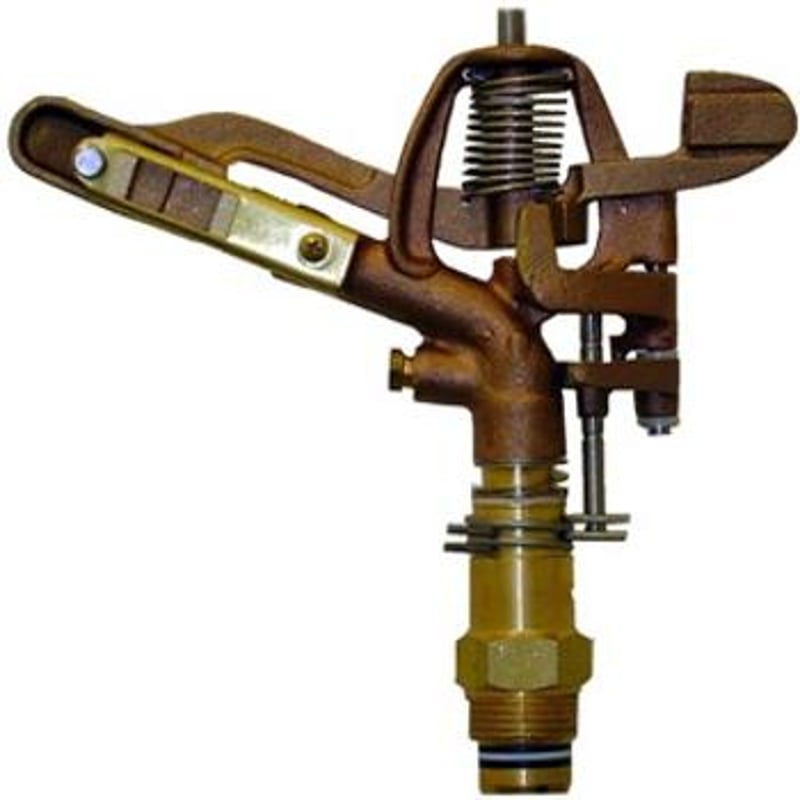

4702PC 1" Part Circle Brass Impact Sprinkler 1/4" with 1/8" spreader nozzle 25 Deg.

Quality Valve & Sprinkler 4702PC Brass Impact Sprinkler — 1" Part Circle, 1/4" + 1/8" Spreader Nozzle, 25°
OverviewQuality Valve & Sprinkler 4702-series brass impact sprinklers deliver high-volume coverage on 1" (25 mm) supply connections, suited to large agricultural fields, orchards, and high-demand turf areas. Full brass construction provides corrosion resistance and repairability in the field. The 4702 body accepts dual replaceable brass nozzles — a primary nozzle and a spreader nozzle — for improved distribution uniformity. The 25° trajectory balances maximum throw with wind-drift resistance.Full-circle (4702FC) and part-circle (4702PC) models are available. The part-circle variant includes an adjustable arc stop for sector coverage. The primary nozzle controls the majority of flow and throw; the spreader nozzle directs a secondary stream at a lower angle to fill in coverage near the sprinkler base. Operating pressure: 20–70 PSI; refer to manufacturer performance data for flow and radius at your design pressure. Riser thread: 1" (25 mm) male NPT.
Specifications

Model	4702PC
Inlet	1" (25 mm) male NPT
Arc	Part circle — adjustable arc stop
Primary nozzle	1/4" bore
Spreader nozzle	1/8" bore
Trajectory	25°
Operating pressure	20–70 PSI
Material	Brass
Part No.	Q149333
