3701PC 3/4" Part Circle Brass Impact Sprinkler / Single Nozzle / 5/32" 25 Deg.

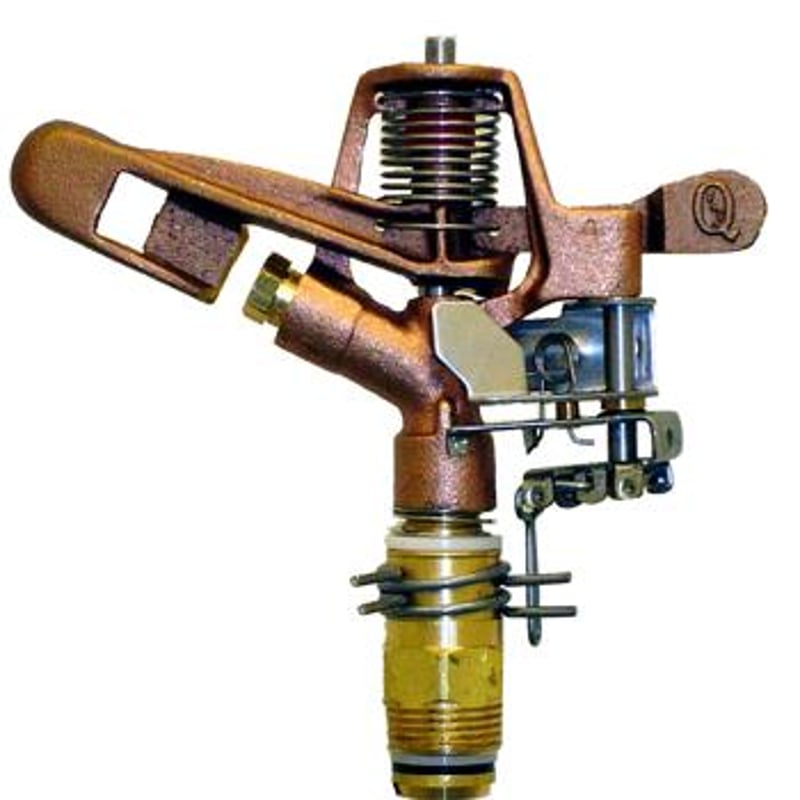

Quality Valve & Sprinkler 3701PC Brass Impact Sprinkler — 3/4" Part Circle, Single Nozzle 5/32", 25°
OverviewQuality Valve & Sprinkler 3701/3702-series brass impact sprinklers provide agricultural-grade coverage on 3/4" (20 mm) supply connections. Full brass construction delivers durability in field and orchard environments. The 3701/3702 body accepts single or dual replaceable brass nozzles and operates over a broad pressure range. The 25° trajectory nozzle angle provides a good balance of throw distance and wind-drift resistance.Part-circle models (3701PC) include an adjustable arc stop; full-circle models (3702FC) rotate continuously. Single-nozzle variants deliver a single stream; dual-nozzle variants add a spreader nozzle for improved close-in coverage and distribution uniformity. Operating pressure: 20–70 PSI; refer to manufacturer charts for flow and radius at design pressure. Nozzles are field-replaceable. Riser thread: 3/4" (20 mm) male NPT.
Specifications

Model	3701PC
Inlet	3/4" (20 mm) male NPT
Arc	Part circle — adjustable arc stop
Nozzle	Single — 5/32" bore
Trajectory	25°
Operating pressure	20–70 PSI
Material	Brass
Part No.	Q139044
