2701PC 1/2" Part Circle Brass Impact Sprinkler 5/32" Nozzle 27 Deg.

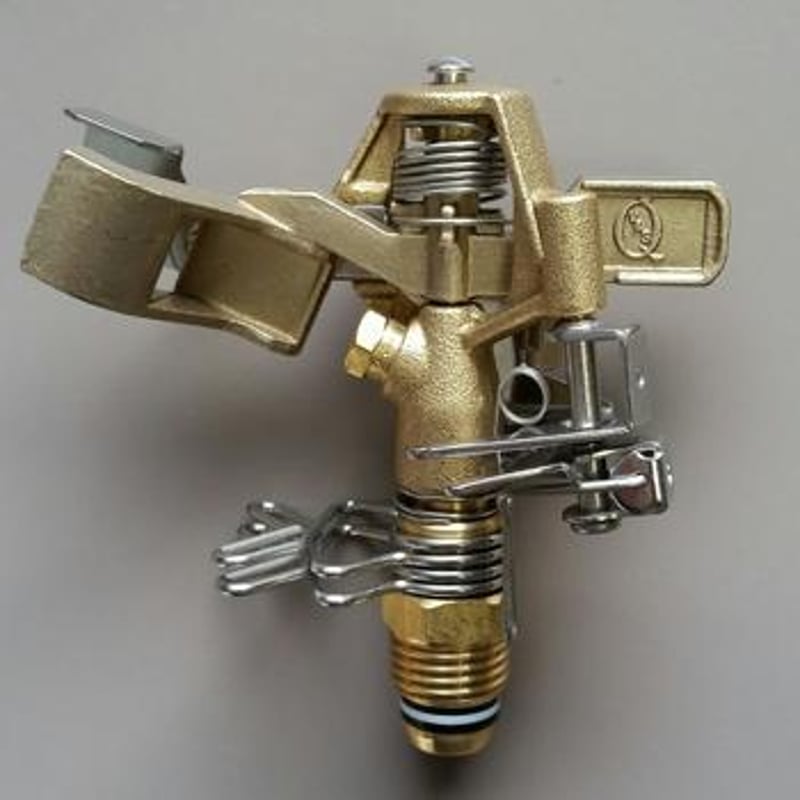

Quality Valve & Sprinkler 2701PC Brass Impact Sprinkler — 1/2" Part Circle, 5/32" Nozzle, 27°
OverviewQuality Valve & Sprinkler 2701-series brass impact sprinklers deliver reliable agricultural-grade coverage on 1/2" (13 mm) supply connections. Built entirely of brass for corrosion resistance and long service life in field conditions, the 2701 body accepts a single replaceable brass nozzle and operates over a wide pressure range. The 27° trajectory nozzle angle balances throw distance with wind resistance.Part-circle models (PC) include an adjustable arc stop for sector irrigation; full-circle models (FC) rotate 360° continuously. The 5/32" standard bore nozzle suits medium-spacing agricultural layouts. Operating pressure range: 20–70 PSI; consult manufacturer performance charts for flow rate and throw radius at your design pressure. Nozzle is field-replaceable. Riser thread: 1/2" (13 mm) male NPT.
Specifications

Model	2701PC
Inlet	1/2" (13 mm) male NPT
Arc	Part circle — adjustable arc stop
Nozzle	Single — 5/32" bore
Trajectory	27°
Operating pressure	20–70 PSI
Material	Brass
Part No.	Q129052
