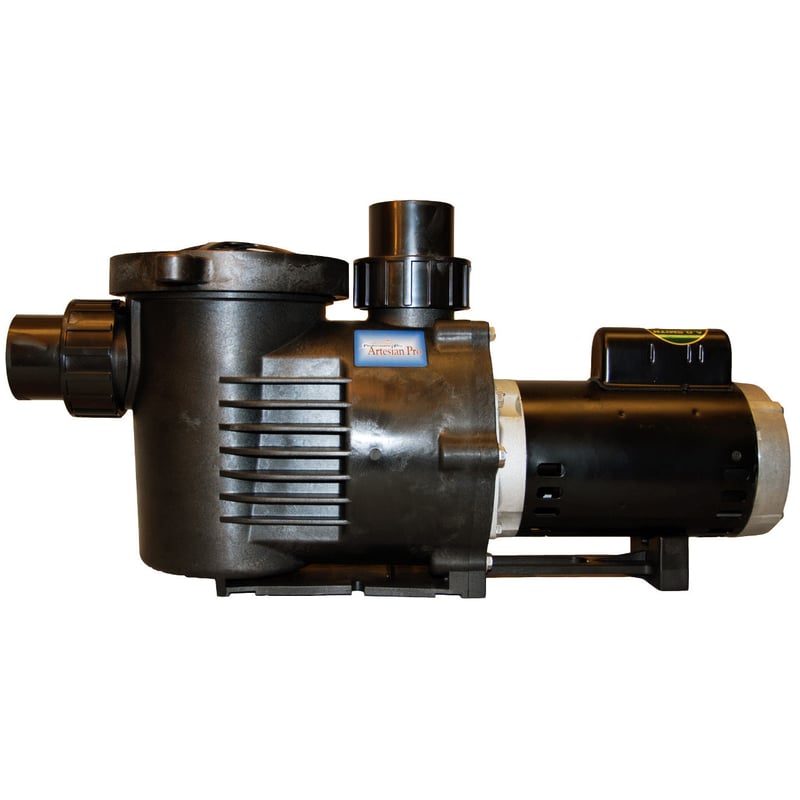

ArtesianPro (High Head) - 5HP, 208-230V, 3600 RPM, 19.2 Amp (230V) - 16,500 GPH - 91.9'

The Pond Pro Plus ArtesianPro High Head 5 HP External Pump delivers 16,500 GPH at 3600 RPM with up to 91.9 feet of head for large commercial high-lift installations.
Overview The PPP-AP50-HH is a Pond Pro Plus ArtesianPro 5 HP external centrifugal pump in the High Head 3600 RPM configuration, drawing 19.2 amps at 230V on a 208-230V circuit. The High Head impeller delivers 16,500 GPH at up to 91.9 feet — the highest head rating in the ArtesianPro line — for commercial installations where both very high flow and maximum head are required simultaneously. 208-230V service required; at 19.2 amps, confirm electrical circuit sizing per NEC. The AP50-HH represents the peak head-and-flow capability in the Pond Pro Plus commercial pump lineup.
Specifications

Max Flow	16,500 GPH
Max Head	91.9'
Motor	5 HP
Speed	3600 RPM
Voltage	208-230V
Amps	19.2 (230V)
Type	External Centrifugal Pump - ArtesianPro High Head
Brand	Pond Pro Plus
