KICHLER
Kichler Gen 1.75 Integra Line - 375Lm - AZT - 35 Deg - 30K
$227.98
List price, excluding tax
Eco fee$0.15 each
Added at checkout and shown on your invoice.
Sign in to see your account pricing. Contract customers pay less than list on most items.
36 options in this range.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaOut of stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock

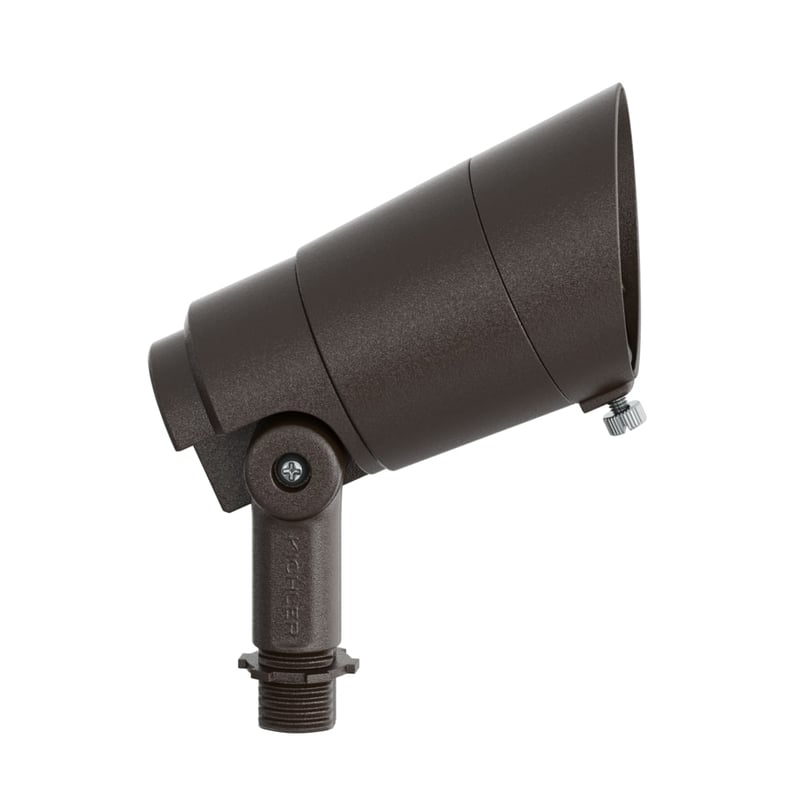

Integra 375 lm LED accent light, 35 degree beam, 3000K, 12V
A compact integrated-LED accent light for 12V low-voltage landscape lighting, with a Textured Architectural Bronze finish and an aluminum body. 375 lumens at 3000K (pure white) with a 35-degree beam. The LED is built in, so there is no lamp to change.
Light output
- 375 lm from 3.5 W (4.5 VA), CRI 80, rated life 40,000 hours
- Dims from 100% to 10% lumen output with the PLC Dimmer; a PLC Dimmer run takes up to 20 fixtures, and non-dimmable fixtures at the end of the run do not count toward that limit
Installation
- Wet location rated, IP66, with 2,000-volt fixture level surge protection
- 48 in (122 cm) lead connects with wire nuts; 8 in mounting stake and gel-filled wire nuts in the box
- Knuckle adjusts up to 90 degrees with a screwdriver
- Operating range 9-15 V AC, for consistent output along the run
- Needs low-voltage wire and a 12V transformer
Pairs well with
- Mounting Flange, Architectural Bronze (KIC-15601AZT)
- Mounting Junction, Architectural Bronze (KIC-15609AZT)
- 6 in Riser Stem (KIC-15645AZT)
- Mounting Bracket, Architectural Bronze (KIC-15607AZT)

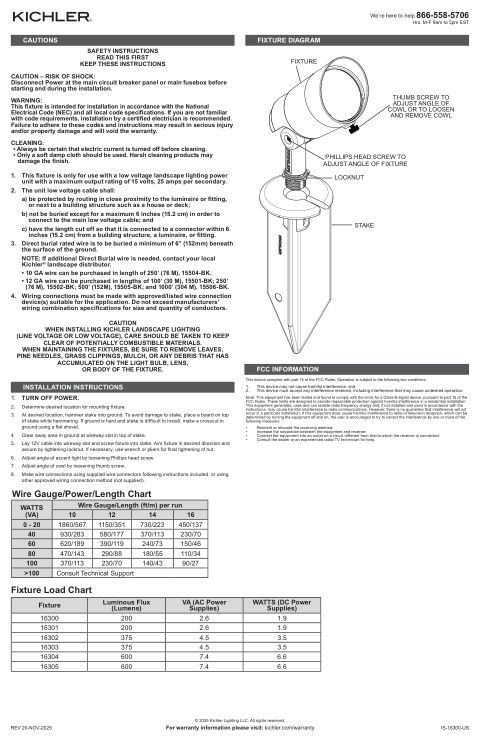

Instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Integrated LED light source for low maintenance, long lasting fixture that requires no lamp changing
- Its high-quality optics assure no halos or scallops for a superb center to edge uniformity, delivering a clean, clear light
- Certified through an independent 3rd-party lab, this IP66-rated design provides a dust and watertight housing that can protect against strong jets of water that can occur in coastal areas with strong storms or applications close to sprinklers
- 2,000-volt fixture level surge protection protects against power surges and irregularities
- 9 to 15V operating range - Ensures consistent light output throughout a run
- The knuckle adjustment screw allows for quick positioning of the fixture's angle, up to 90 degrees, with a screwdriver
- Pair with the PLC Dimmer for maximum functionality and smooth dimming from 100% lumen output to 10% lumen output and customize your application with accessories like a long cowl or hex louver to reduce and eliminate glare
- All 12V low voltage fixtures require low voltage wire and a transformer to operate as a system
| Brand | Kichler |
|---|---|
| Manufacturer part # | 16302AZT30 |
| UPC | 783927079020 |
| Operating voltage range | 9-15 V AC |
| Light source | Integrated LED |
| Wattage | 3.5 W |
| Volt-amperes | 4.5 VA |
| Lumens | 375 lm |
| Colour temperature | 3000K |
| CRI | 80 |
| Beam angle | 35 degrees |
| Efficacy | 110 lm/W |
| Rated life | 40,000 hours |
| Dimmable | Yes, with PLC Dimmer |
| Finish | Textured Architectural Bronze |
| Material | Aluminum |
| Lens | Clear |
| Wet location rated | Yes |
| Location | Exterior |
| Ingress protection | IP66 |
| Surge protection | 2,000-volt fixture level |
| Lead wire length | 48 in (122 cm) |
| Wire connectors | Wire nuts |
| Product dimensions | 5.14 × 2.59 × 4.38 in (13 × 7 × 11 cm), L × W × H |
| Weight | 1.1 lb (0.5 kg) |
