KICHLER
Surface Mount Louvered Step Light 0.86W 12V Integrated LED - Textured Architectural Bronze
$223.99
List price, excluding tax
Eco fee$0.15 each
Added at checkout and shown on your invoice.
Sign in to see your account pricing. Contract customers pay less than list on most items.
3 options in this range.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaOut of stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock

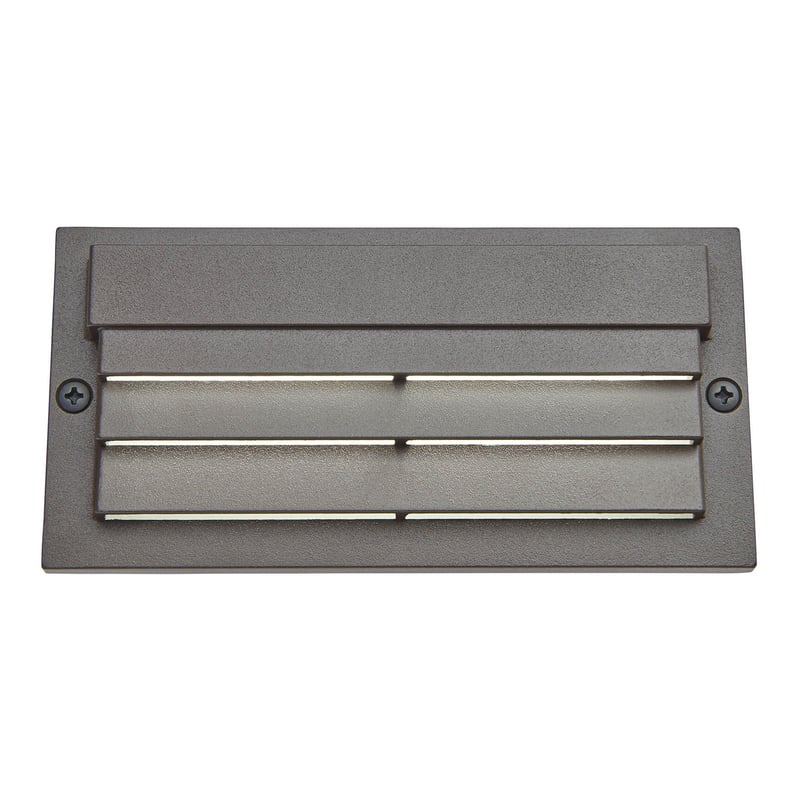

Louvered surface mount LED step light for 12V landscape lighting, 2700K
A low-profile, louvered LED step light that surface mounts without a junction box, for retrofit or new construction. Aluminum body in textured architectural bronze, wet-location rated and IP67.
Light output
- 2700K at 7 lm from 0.82 W (1.45 VA), CRI 80
- Custom optics with a diffused lens give smooth, even light with no hotspots or glare
- Integrated LED rated for 40,000 hours, not dimmable
Installation
- Mounts to steps, decks and retaining walls without cutting a junction box
- Removable mounting template for easier layout
- Sealed and fully encapsulated, with 4,000-volt system surge protection
- 84 in (213 cm) lead with wire nuts; two gel-filled wire nuts are in the box
- Measures 6 × 0.75 × 3 in (15 × 2 × 8 cm)

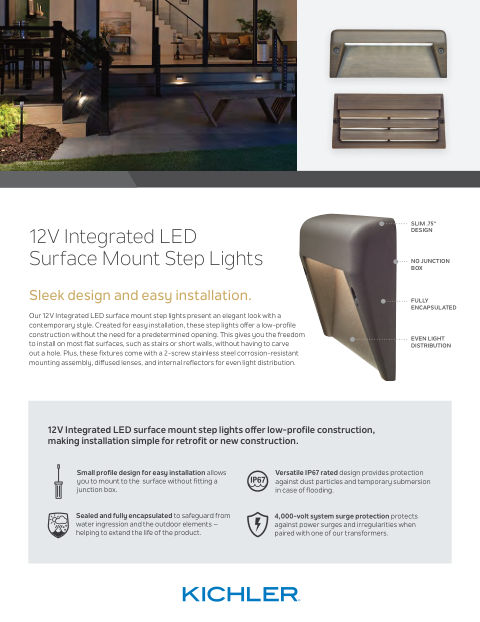

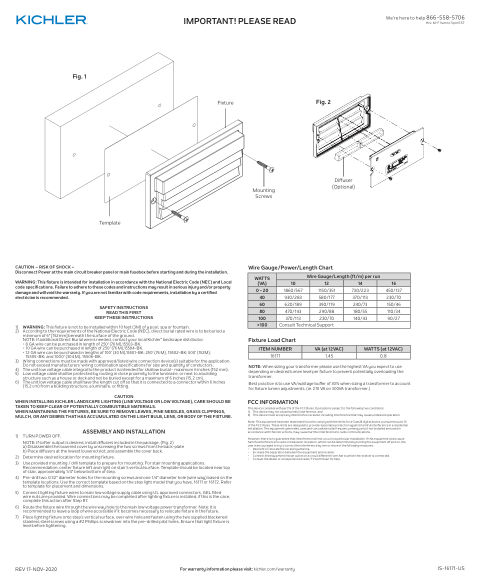

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Small profile design for easy installation allows you to mount to surfaces like steps, decks, and retaining walls without cutting a junction box.
- Equipped with removable mounting template for extra ease of installation.
- Sealed and fully encapsulated to safeguard from water ingression and the outdoor elements – helping to extend the life of the product.
- Custom optics with a diffused lens provides smooth, uniform light distribution to eliminate glare and hotspots.
- 4,000-volt system surge protection protects against power surges and irregularities, especially when paired with one of our transformers
- Versatile IP67 rated design provides protection against dust particles and temporary submersion in case of flooding.
| Brand | Kichler |
|---|---|
| Manufacturer part # | 16171AZT27 |
| UPC | 783927003247 |
| Input voltage | 12 V |
| Operating voltage range | 9-15 V AC |
| Light source | Integrated LED |
| Power | 0.82 W |
| Volt-amperes | 1.45 VA |
| Delivered lumens | 7 lm |
| Colour temperature | 2700K |
| CRI | 80 |
| Efficacy | 8 lm/W |
| Rated life | 40,000 hours |
| Dimmable | No |
| Surge protection | 4,000 V system surge protection |
| IP rating | IP67 |
| Wet location rated | Yes |
| Finish | Textured Architectural Bronze |
| Material | Aluminum |
| Lens | Diffused lens |
| Mounting | Surface mount, no junction box needed |
| Lead wire length | 84 in (213 cm) |
| Wire connectors | Wire nuts |
| Product dimensions | 6 × 0.75 × 3 in (15 × 2 × 8 cm), L × W × H |
| Weight | 0.6 lb (0.3 kg) |
