KICHLER
2W 100lm Recessed w/changeable optics (20, 40 & 75 deg) - Cast Brass, 3000K
$186.99
List price, excluding tax
Eco fee$0.15 each
Added at checkout and shown on your invoice.
Sign in to see your account pricing. Contract customers pay less than list on most items.
8 options in this range.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaOut of stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryIn stock

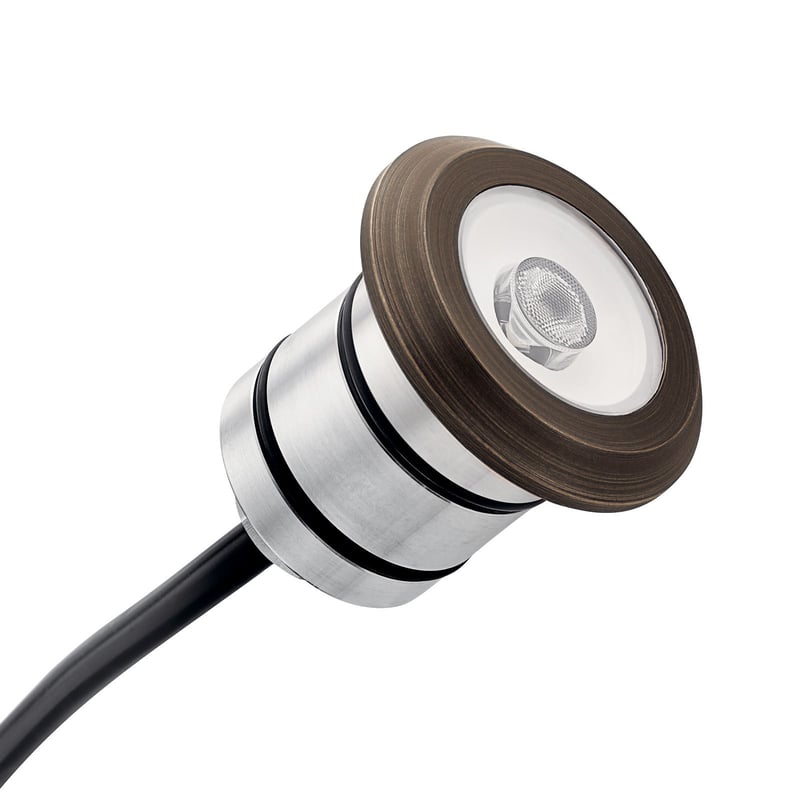

Mini All-Purpose recessed LED light for 12V landscape lighting, 3000K
A fully sealed, encapsulated 12V recessed LED light with three field-changeable beam optics in the box. Centennial Brass finish, 2.25 in (6 cm) wide and 2.25 in (6 cm) high, wet-location rated and IP68.
Light output
- 3000K at 100 lm from 1.6 W (2.5 VA), CRI 80
- Beam optics of 20°, 40° (factory installed) and 75°, swapped in the field
- Integrated LED rated for 40,000 hours, not dimmable
Installation
- Removable spring clip and compression sleeve adapt to a wide variety of installs
- Drive-over rated for static loads up to 1500 lb
- 72 in (183 cm) lead with wire nuts
- Top trims (shroud, side-fire, two-way, four-way, louvered, square, one-way and honeycomb) change how the light is delivered

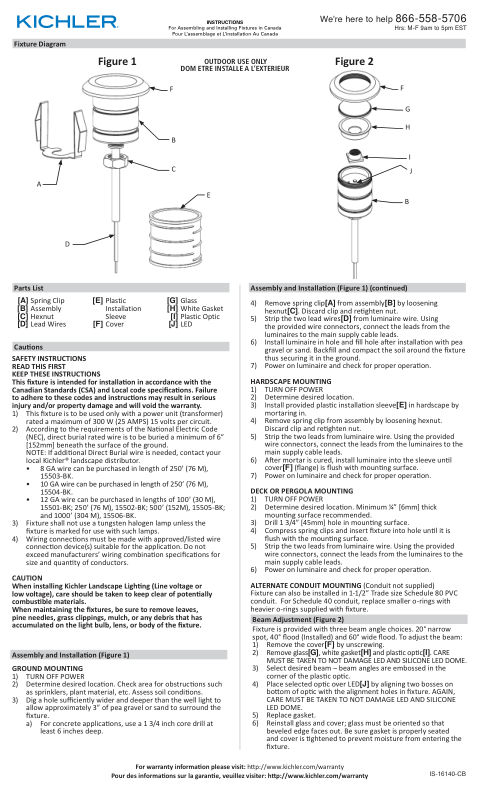

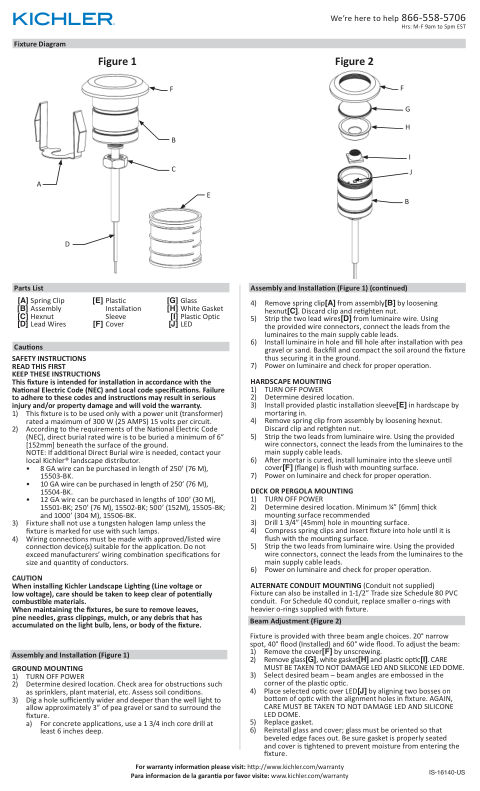

Instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- The three field changeable beam optics are included with each fixture: 20-, 40- (factory installed), and 75-degrees allow you to put light where you want it.
- This drive-over rated design can tackle static loads up to 1500lbs
- A removable spring clip and compression sleeve adapt to a wide variety of applications for seamless installation.
- IP68 rated against dust and water ingression.
| Brand | Kichler |
|---|---|
| Manufacturer part # | 16140CBR30 |
| UPC | 783927554923 |
| Input voltage | 12 V |
| Operating voltage range | 9-15 V AC |
| Light source | Integrated LED |
| Power | 1.6 W |
| Volt-amperes | 2.5 VA |
| Delivered lumens | 100 lm |
| Colour temperature | 3000K |
| CRI | 80 |
| Efficacy | 50 lm/W |
| Rated life | 40,000 hours |
| Dimmable | No |
| Beam angle options | 20°, 40° (factory installed), 75°, field-changeable optics included |
| IP rating | IP68 |
| Drive-over rated | Yes, static loads up to 1500 lb |
| Wet location rated | Yes |
| Finish | Centennial Brass |
| Material | Stainless Steel |
| Mounting | Recessed |
| Lead wire length | 72 in (183 cm) |
| Wire connectors | Wire nuts |
| Product dimensions | 2.25 × 2.25 in (6 × 6 cm), W × H |
| Weight | 0.94 lb (0.4 kg) |
