KICHLER
6" GEN 2 HARDSCAPE LED 2700K - GREY
$105.98
List price, excluding tax
Eco fee$0.15 each
Added at checkout and shown on your invoice.
Sign in to see your account pricing. Contract customers pay less than list on most items.
34 options in this range.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideIn stock
BurnabyIn stock
VancouverIn stock
LangleyIn stock
CalgaryIn stock

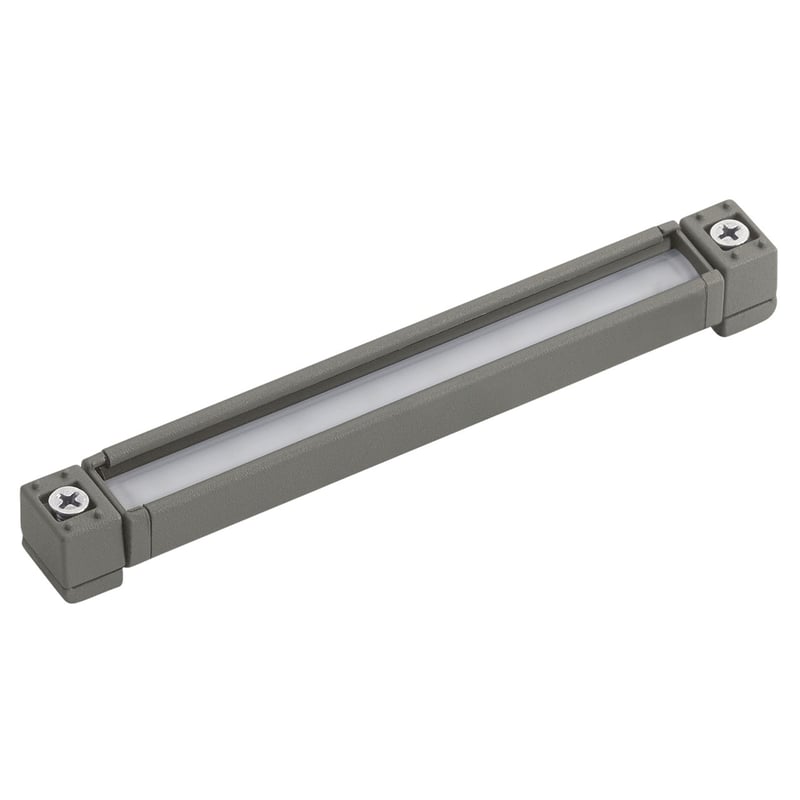

6 in Gen 2 hardscape LED light, 2700K, gray, for 12V landscape lighting
A fully sealed, integrated LED light for retaining walls, steps and other hardscape. The head pivots 180 degrees for direct-to-surface installs and 270 degrees from the mounting bracket, and the custom optic smooths the light and cuts hotspots and glare.
Light output
- 2700K warm white, 40 lm, CRI 80
- 0.9 W (1.45 VA) integrated LED, rated 40,000 hours; not dimmable
- Operating range is 9-15 V AC, so output stays consistent along a run
Installation
- Downlight or uplight, on or off the mounting bracket; the bracket has breakaway corner tabs for retrofit work
- Fixture is 6 × 3 × 0.75 in (15 × 8 × 2 cm), 0.45 lb (0.2 kg)
- 80 in (203 cm) lead with wire nuts; 304 stainless steel masonry bracket, off-bracket mounting kit and hex wrench in the box
Built for outdoors
IP67 rated, with encapsulated electronics and 2,000 V surge protection. The Textured Gray finish blends with gray masonry and cool-toned stone.
Pairs well with

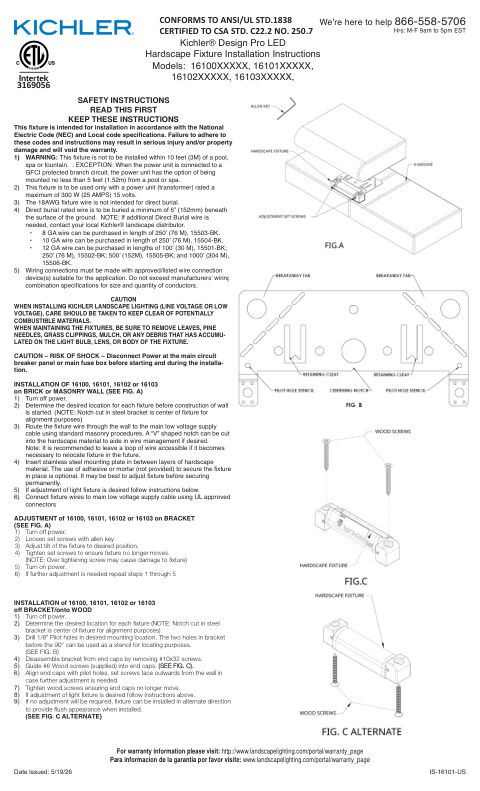

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Adjustable fixture pivots 180 degrees for direct-to-surface installs and 270 degrees with the mounting bracket; usable range is installation dependent
- Custom optical lens diffuses light for smooth, uniform output, eliminating hotspots and glare that may reflect off walls or installation surfaces
- Install as a traditional downlight or as an uplight, on or off the mounting bracket
- Housing cavity and electronics are encapsulated to keep critical components protected against the elements
- 2,000-volt surge protection helps guard against system power surges and irregularities
- Customizable mounting bracket with breakaway corner tabs for easier retrofit installations, designed as an installation template with centering notch and screw pilot holes
- Textured Gray blends seamlessly with gray masonry and cool-toned stone
- Versatile IP67 rated design protects against dust particles and temporary submersion in case of flooding
| Brand | Kichler |
|---|---|
| Manufacturer part # | 16101GRY27 |
| UPC | 783927533539 |
| Input voltage | 12 V |
| Operating voltage range | 9-15 V AC |
| Light source | Integrated LED |
| LED modules | 1 |
| Wattage | 0.9 W |
| Volt-amperes | 1.45 VA |
| Lumens | 40 lm |
| Colour temperature | 2700K |
| CRI | 80 |
| Rated life | 40,000 hours |
| Dimmable | No |
| Finish | Gray |
| Material | Aluminum |
| Wet location rated | Yes |
| Mounting | Mounting plate |
| Lead wire length | 80 in (203 cm) |
| Wire connectors | Wire nuts |
| Product dimensions | 6 × 3 × 0.75 in (15 × 8 × 2 cm), L × W × H |
| Weight | 0.45 lb (0.2 kg) |
| IP rating | IP67 |
| Pivot | 180 degrees direct to surface; 270 degrees with mounting bracket |
| Surge protection | 2,000 V |
