KICHLER
VLO 12V LED In-Ground 35 Degree 2700K - 350, 550 & 850 Lumens
$560.99
List price, excluding tax
Eco fee$0.15 each
Added at checkout and shown on your invoice.
Sign in to see your account pricing. Contract customers pay less than list on most items.
5 options in this range.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaOut of stock
WestsideOut of stock
BurnabyOut of stock
VancouverIn stock
LangleyOut of stock
CalgaryOut of stock

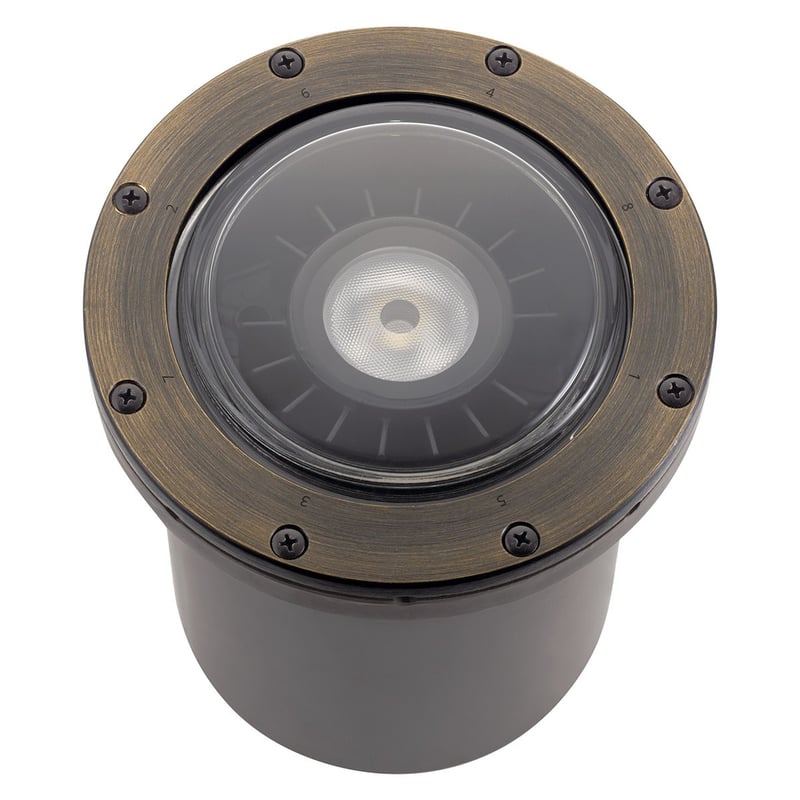

35 degree 2700K LED in-ground accent light for 12V landscape lighting, drive-over rated
A solid brass in-ground accent light in Centennial Brass with a 35 degree beam, for lighting most trees and walls. The driver is sealed and potted in the fixture, and the IP67 drive-over design takes static loads up to 4600 lb (2086.5 kg).
Light output
- 2700K warm white, 35 degree beam, CRI 80
- Three lumen settings, 350, 550 or 850 lm, switched with the magnetic key
- 13 W integrated LED, rated 40,000 hours; not dimmable
Installation
- Aim it with a 355 degree rotation and +/- 30 degree articulation
- 6 in (15 cm) lead with wire nuts; 7 × 7 × 8 in (18 × 18 × 20 cm)
- 6,000 V system surge protection, best paired with a Kichler transformer
- Magnetic key, two gel-filled wire nuts, two replacement screws, a cowl, a rubber washer and a thumbscrew come in the box

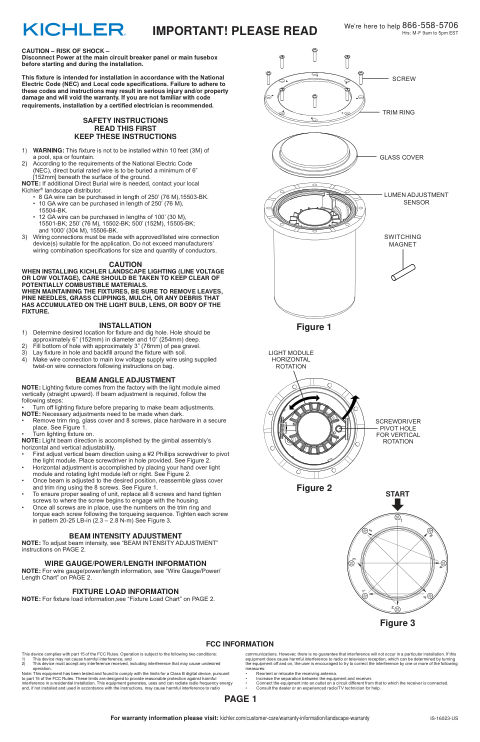

Instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Lumen Effects System lets you switch between three lumen outputs, 350, 550 or 850, with the magnetic key
- Adjust the aim of the light source with a 355 degree rotation and +/- 30 degree articulation
- IP67 rated drive-over design handles static loads up to 4600 lbs, great for driveways and walkways
- Advanced optics for superb center to edge uniformity
- Sealed and potted with the driver for protection against dust and water ingression, so there is no need to mechanically adjust or open the fixture
- Our most popular and versatile beam angle, best for lighting most trees and walls
- 6,000-volt system surge protection protects against power surges and irregularities, especially when paired with one of our transformers
- Solid brass construction with a polycarbonate TIR (Total Internal Reflection) lens and tempered, shock resistant borosilicate glass lens
| Brand | Kichler |
|---|---|
| Manufacturer part # | 16024CBR27 |
| UPC | 783927587709 |
| Input voltage | 12 V |
| Operating voltage range | 9-15 V AC |
| Light source | Integrated LED |
| LED modules | 1 |
| Wattage | 13 W |
| Lumens | 850 lm |
| Colour temperature | 2700K |
| Beam angle | 35 degrees |
| CRI | 80 |
| Rated life | 40,000 hours |
| Dimmable | No |
| Finish | Centennial Brass |
| Material | Brass |
| Wet location rated | Yes |
| Lead wire length | 6 in (15 cm) |
| Wire connectors | Wire nuts |
| Product dimensions | 7 × 7 × 8 in (18 × 18 × 20 cm), L × W × H |
| Weight | 5.5 lb (2.5 kg) |
| Lumen settings | 350, 550 or 850 lm, selected with the magnetic key |
| IP rating | IP67 |
| Drive-over rating | Static load up to 4600 lb (2086.5 kg) |
| Aiming | 355 degree rotation, +/- 30 degree articulation |
| Surge protection | 6,000 V system surge protection |
