2-in-1 Drip Filter & 30 or 40 PSI Regulator 1" x 1" NPT

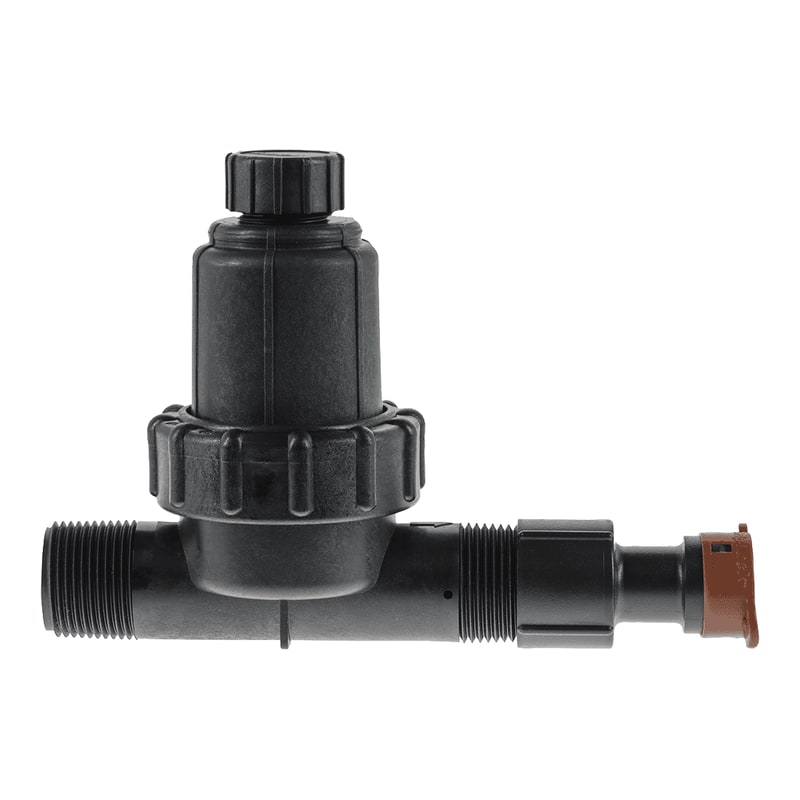

Hydro-Rain 2-in-1 Drip Filter and 30/40 PSI Pressure Regulator — 1" NPT
OverviewThe Hydro-Rain HRZ combines a basket filter with a pressure regulator in a single 1" NPT housing for drip and micro-irrigation zone heads. Water passes through the internal filter basket to remove sediment, then through the integral regulator to deliver consistent downstream pressure to the lateral. The combination unit replaces two separate inline components.Available in 30 or 40 PSI preset outlet pressure. 1" x 1" NPT connections. Filter basket is removable for cleaning. Compact design fits in a standard valve box alongside the zone valve. Maximum inlet pressure 150 PSI.
Specifications

Model	HYD-HRZ-100-FB-75
Connection	1" x 1" NPT
Outlet Pressure	30 or 40 PSI (factory set)
Filter	Basket type, removable
Max Inlet	150 PSI
