HYDRO-RAIN

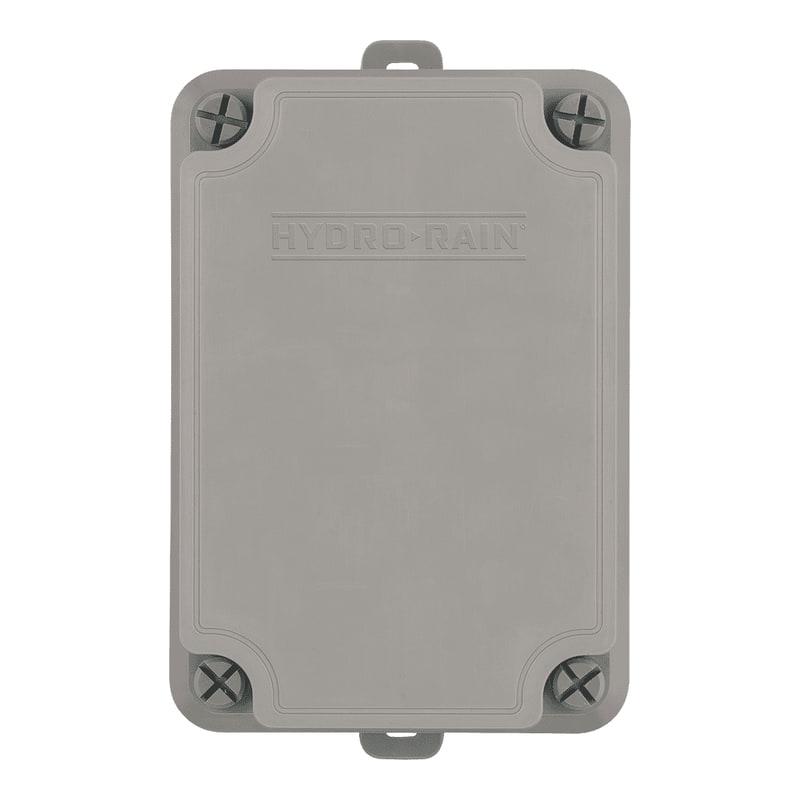

Pump Start Relay, 2 HP contacts, 24 VAC coil, 110 / 220 VAC
$264.59
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock
Pump start relay for 24 VAC sprinkler controllers, pumps up to 2 HP
Starts the pump automatically when the controller opens a valve. For smaller systems that need a pump: it handles 1 HP at 110 VAC or 2 HP at 220 VAC, and works with 24 VAC sprinkler controllers.
Electrical
- 24 VAC, 50/60 Hz coil: 79 mA inrush, 71 mA holding, 303 ohm resistance
- Double pole, single throw contacts rated 15 A inductive and 25 A resistive, single phase
- Conforms to UL, CSA and TUV, and meets IEC950
Installing
- Locking, weather-resistant case with a covered wiring compartment
- Mount with the test button facing down, and keep from touching the button by accident
- Use the test button only for circuit tests, never to switch the load
Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Works with 1 HP 110VAC or 2 HP 220VAC pumps.
- Works with 24VAC sprinkler controllers.
- Automatically activates pump when the controller activates a valve.
- Locking, weather-resistant case.
- Covered wiring compartment for extra protection.
- Simple, trouble-free design.
- Conforms to UL, CSA, TUV and meets IEC950.
- Includes test button for relay circuit tests, such as circuit continuity tests.
| Brand | Hydro-Rain |
|---|---|
| Manufacturer part # | HRC-PSR |
| Pump size | Up to 1 HP at 110 VAC, up to 2 HP at 220 VAC |
| Coil | 24 VAC, 50/60 Hz |
| Coil resistance | 303 ohms (±10%) |
| Inrush current | 79 mA |
| Holding current | 71 mA |
| Contact rating | Double pole, single throw; 15 A inductive, 25 A resistive |
| Contactor rating | Single phase |
| Enclosure | Locking, weather-resistant case with covered wiring compartment |
| Certifications | UL, CSA, TUV, meets IEC950 |
| Weight | 1.5 lb (0.7 kg) |
| Product dimensions | 4.375 × 6 × 8.125 in (11 × 15 × 21 cm) |
