Hunter Industries
Icv 2" Glass-Filled Nylon, 200 Psi W/Flow Control Npt
$545.45
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryIn stock

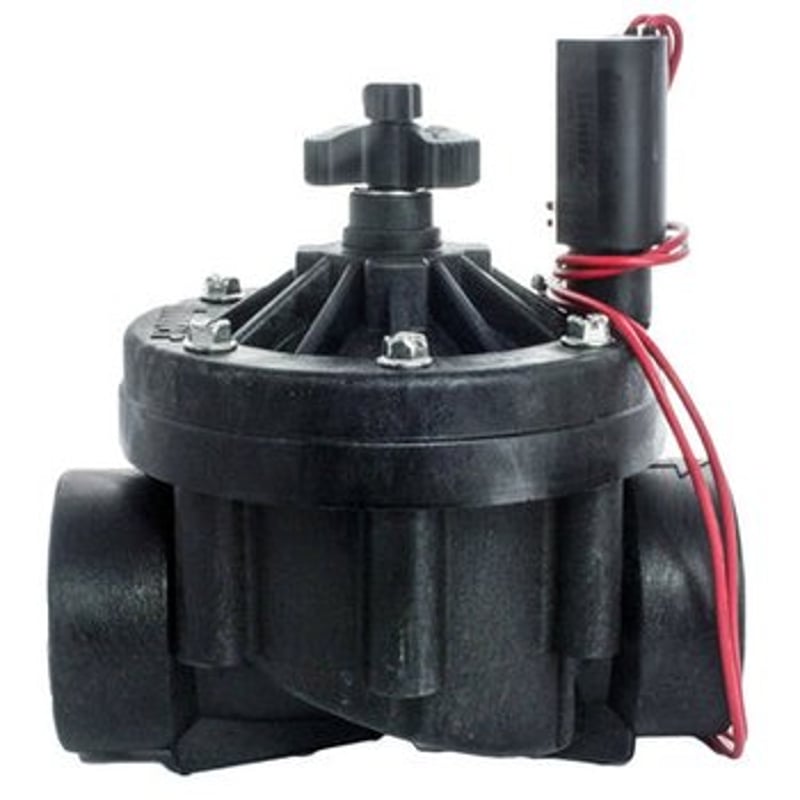

ICV 2 in glass-filled nylon globe valve with flow control, 220 PSI
A commercial-grade 2 in valve for high-pressure systems, with fabric-reinforced EPDM diaphragm and seat and flow control to fine-tune each zone. It carries on through high velocities, fluctuating flow and difficult water.
Sizing
- 2 in inlet, 0.1 to 200 GPM, 20 to 220 PSI recommended, rated to 150°F
- 24 VAC solenoid: 350 mA inrush and 190 mA holding at 60 Hz (370 mA and 210 mA at 50 Hz)
- Smaller zone? See the ICV 1 in glass-filled nylon valve (HUN-ICV-101G)
Service and options
- Reverse-porting solenoid releases surge downstream for built-in water-hammer protection
- Captive bonnet screws, and triple-tool screws that take a standard or Phillips screwdriver or a nut driver
- Add Accu Sync pressure regulation at the valve, a DC-latching solenoid (P/N 458200) or a solenoid conduit cover (P/N 464322)
- Filter Sentry can be added to an installed valve
5-year warranty. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Reliable : 100% water-tested and engineered to withstand pressure of up to 220 PSI
- Durable : Built with glass-filled nylon that results in extremely sturdy construction
- Stable : Flow control allows for the fine-tuning of flow and pressure for each zone
- External/internal manual bleed allows for quick and easy activation at the valve
- Reverse-porting solenoid design provides built-in pressure-surge and water-hammer protection
- Double-beaded diaphragm seal design ensures leak-free performance
- Fabric-reinforced EPDM diaphragm and seat ensure greater performance in all water conditions
- Captive bonnet screws eliminate the possibility of lost parts during disassembly
| Brand | Hunter |
|---|---|
| Manufacturer part # | ICV201G |
| UPC | 0611698111895 |
| Material | Glass-filled nylon |
| Inlet size | 2 in |
| Flow rate | 0.1 to 200 GPM |
| Recommended pressure range | 20 to 220 PSI |
| Temperature rating | 150°F |
| Diaphragm and seat | Fabric-reinforced EPDM, double-beaded seal |
| Solenoid | 24 VAC |
| Solenoid current, 60 Hz | 350 mA inrush, 190 mA holding |
| Solenoid current, 50 Hz | 370 mA inrush, 210 mA holding |
| Warranty | 5 years |
