Hit Products - 13" Spray head pop up sprinkler in a 6" body, telescopic

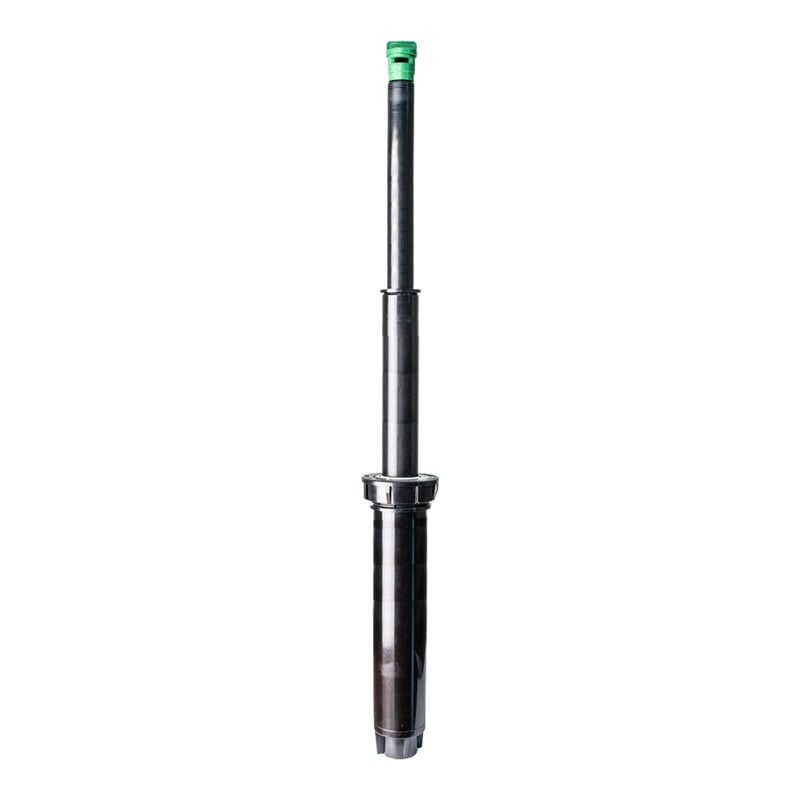

13" telescopic pop-up spray head in a 6" body

A telescopic pop-up spray head that delivers a 13" pop-up from a 6" body, so you get a tall riser without a deep trench. The double-acting telescoping piston is backed by two independent heavy duty stainless steel retraction springs.

Sizing and setup

• 13 in pop-up from a 6 in body, 2-1/8 in (5 cm) exposed surface diameter
• Operating pressure 20 to 70 psi, 30 psi recommended; 25 to 70 psi with a check valve
• Side inlet

Retrofit

The 13" pop-up retracts to the same overall height as a 6" pop-up body in the HIT 900 Series, and can be field retrofitted into a HIT 900 Series 6" body or a Rainbird 1806 body.

Options in the line

• Check valve (CKV): holds up to 14 ft of head
• In-stem pressure regulator (PRD) in 30, 40 and 45 psi outlet versions, under separate part numbers

Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
