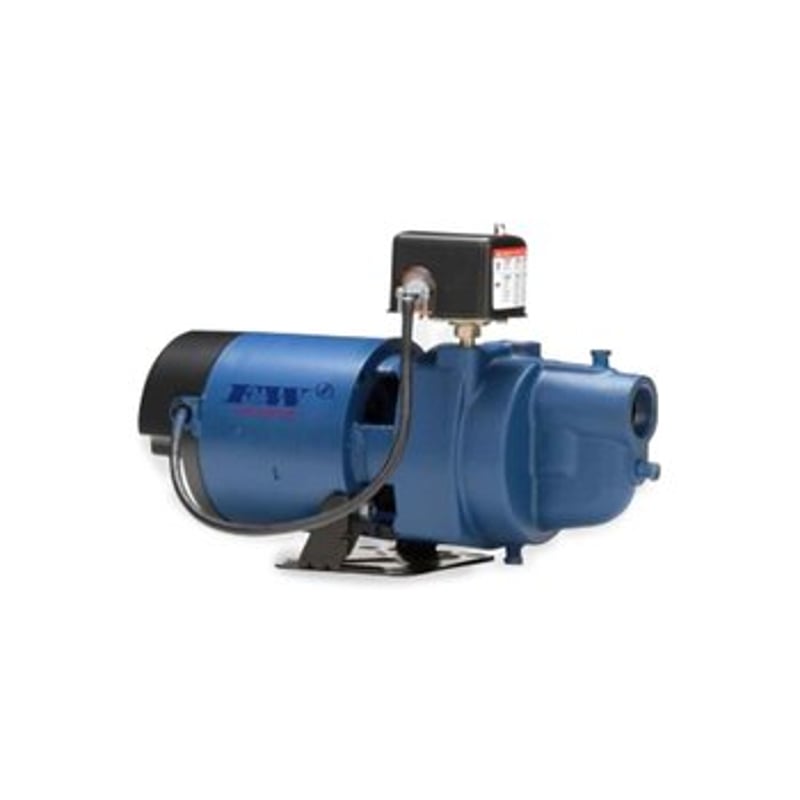

EK Shallow Well Jet Pump- 1HP, 115V/230V, 1PH

FranklinWater EK10S 1 HP Shallow-Well Jet Pump, 115/230V — self-priming residential well pump for wells within 25 ft of suction lift.
OverviewThe FranklinWater EK10S is a 1 HP self-priming shallow-well jet pump rated at 20 GPM maximum flow and 50 PSI maximum discharge pressure, suited to residential water supply from shallow wells, cisterns, and surface water sources within 25 ft of vertical suction lift. It operates on 115V or 230V single-phase for flexible installation in either 15A or 20A panel circuits.Cast iron or composite body (refer to manufacturer spec). TEFC motor, dual voltage 115/230V, 1-phase, 60 Hz. Compatible with standard Boshart tank tees, pressure switches, and pre-pressurized bladder tanks for automatic pressure system service. Maximum suction lift 25 ft; install a foot valve on the suction line to maintain prime. 1¼″ suction inlet and 1″ discharge NPT.
Specifications

HP	1 HP
Max flow	20 GPM
Max pressure	50 PSI
Voltage	115/230V, 1-phase, 60 Hz
Max suction lift	25 ft
Connections	1¼″ suction, 1″ discharge NPT
Application	Shallow-well residential water supply
Part No.	FW-EK10S
