ZOELLER CANADA
10 GPM, 1 HP, STAINLESS STEEL PUMP END
$836.00
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaOut of stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock

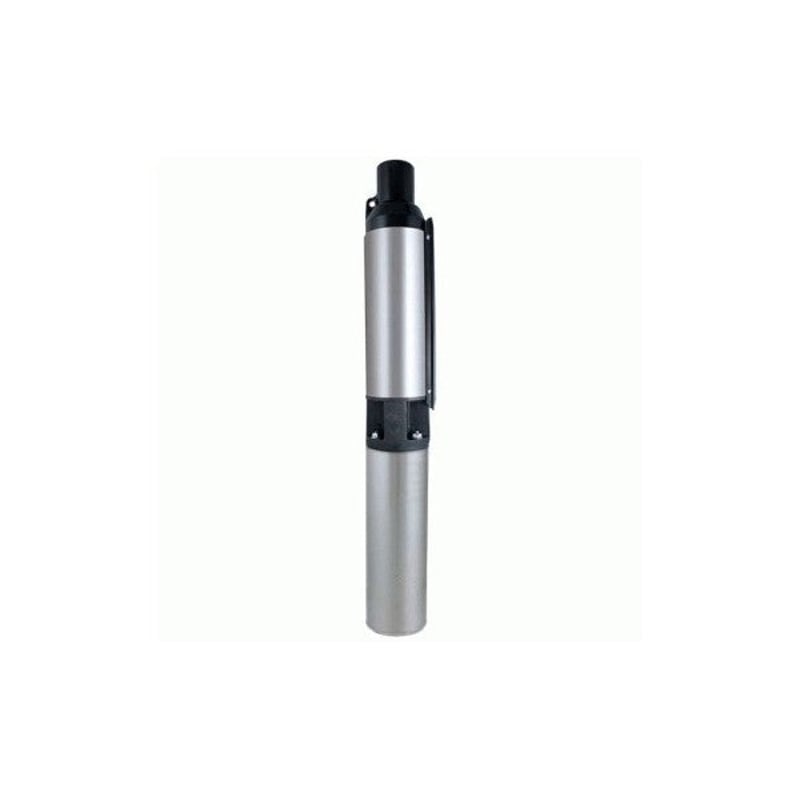

FranklinWater 4F 10 GPM 1 HP Stainless Steel 4″ Submersible Pump End — higher-head residential well pump end.
OverviewThe FranklinWater 4F 10 GPM 1 HP pump end provides the highest head capacity in the 10 GPM 4F series, suited to deeper residential wells, high static water levels, or systems with elevated total dynamic head where a 1/2 HP or 3/4 HP motor would not maintain acceptable operating pressure. Pairs with a 1 HP Franklin Electric 4″ submersible motor.304 stainless steel body and Noryl impellers. 1¼″ FNPT discharge. The 1 HP motor delivers more head at 10 GPM than lower-HP variants, extending the usable depth for standard residential wells. A 3-wire motor with a compatible control box is typically specified at 1 HP; confirm wiring configuration with Franklin Electric system design tool.
Specifications
OverviewThe FranklinWater 4F 10 GPM 1 HP pump end provides the highest head capacity in the 10 GPM 4F series, suited to deeper residential wells, high static water levels, or systems with elevated total dynamic head where a 1/2 HP or 3/4 HP motor would not maintain acceptable operating pressure. Pairs with a 1 HP Franklin Electric 4″ submersible motor.304 stainless steel body and Noryl impellers. 1¼″ FNPT discharge. The 1 HP motor delivers more head at 10 GPM than lower-HP variants, extending the usable depth for standard residential wells. A 3-wire motor with a compatible control box is typically specified at 1 HP; confirm wiring configuration with Franklin Electric system design tool.
Specifications
| GPM | 10 GPM |
| HP (motor) | 1 HP |
| Casing diameter | 4″ |
| Discharge | 1¼″ FNPT |
| Body material | 304 stainless steel |
| Impeller material | Noryl |
| Part No. | FW-4F10S10-PE |
| Brand | Zoeller Canada |
|---|---|
| Manufacturer part # | 4F10S10-PE |
