10 GPM, 3/4HP, STAINLESS STEEL PUMP END

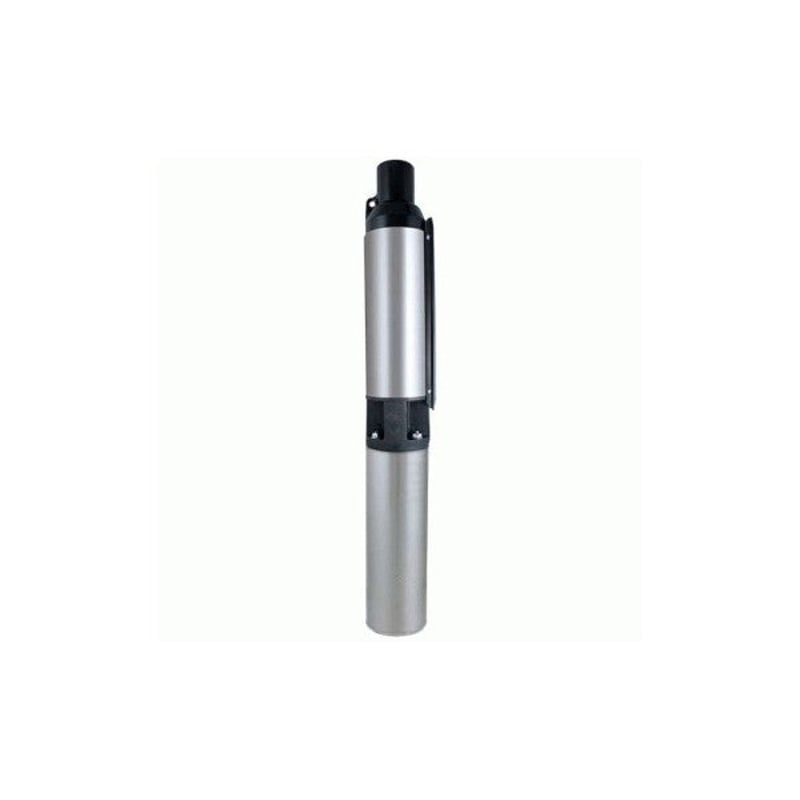

FranklinWater 4F 10 GPM 3/4 HP Stainless Steel 4″ Submersible Pump End — residential well pump end for moderate-head 10 GPM systems.
OverviewThe FranklinWater 4F 10 GPM 3/4 HP pump end is a popular 4″ stainless steel submersible pump end for residential wells with static water levels and total dynamic head within the 3/4 HP performance envelope at 10 GPM. The 10 GPM flow rate covers most single-family residential water demands without irrigation. Pairs with a compatible 3/4 HP Franklin Electric 4″ submersible motor.304 stainless steel body and Noryl impellers for long service life in potable well water. 1¼″ FNPT discharge. The 3/4 HP motor specification provides head capacity appropriate for wells up to approximately 200 ft depending on TDH; refer to Franklin system sizing tables for exact performance limits. Confirm control box type (2-wire or 3-wire) and wire gauge at time of system design.
Specifications

GPM	10 GPM
HP (motor)	3/4 HP
Casing diameter	4″
Discharge	1¼″ FNPT
Body material	304 stainless steel
Impeller material	Noryl
Part No.	FW-4F10S07-PE
