5 GPM, 3/4HP, STAINLESS STEEL PUMP END

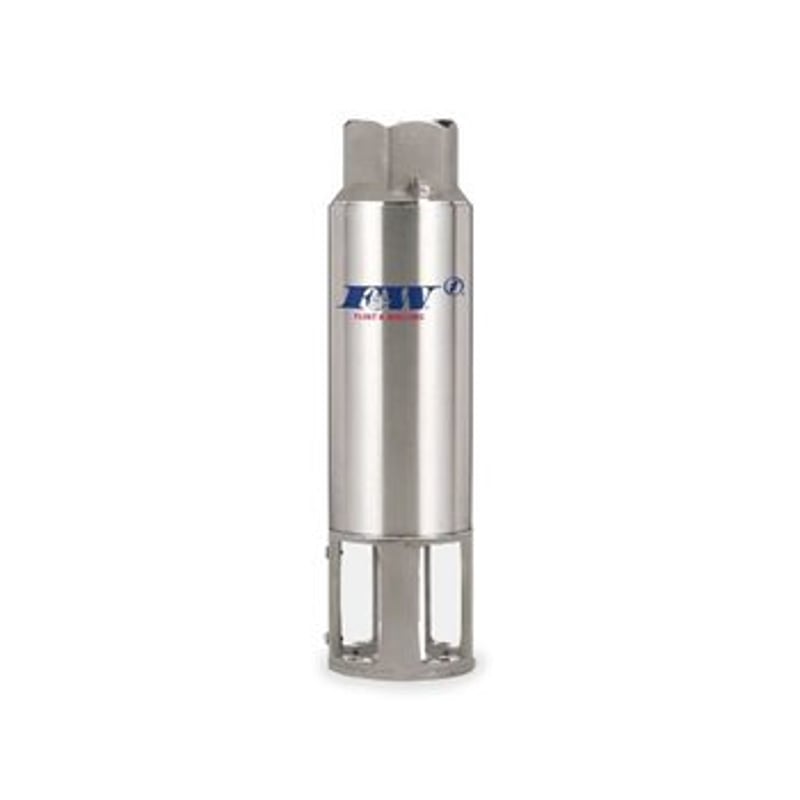

FranklinWater 4F 5 GPM 3/4 HP Stainless Steel 4″ Submersible Pump End — low-yield well pump end for 5 GPM residential systems.
OverviewThe FranklinWater 4F 5 GPM 3/4 HP pump end serves low-yield residential wells where the aquifer recovery rate limits demand to 5 GPM, while the 3/4 HP motor selection provides adequate head for deeper wells or higher static lift conditions compared to a 1/2 HP motor. As a pump end only, it pairs with a Franklin Electric 4″ 3/4 HP submersible motor.304 stainless steel body and Noryl impellers. 1¼″ FNPT discharge. The 5 GPM capacity is sized for low-yield wells serving single-family residences with modest fixture counts and no irrigation; supplement with a storage tank and booster system for higher peak demands. Match to Franklin Electric motor using the published system sizing tables.
Specifications

GPM	5 GPM
HP (motor)	3/4 HP
Casing diameter	4″
Discharge	1¼″ FNPT
Body material	304 stainless steel
Impeller material	Noryl
Part No.	FW-4F05S07-PE
