1HP, 230VOLT, 3 WIRE, 1 PHASE MOTOR

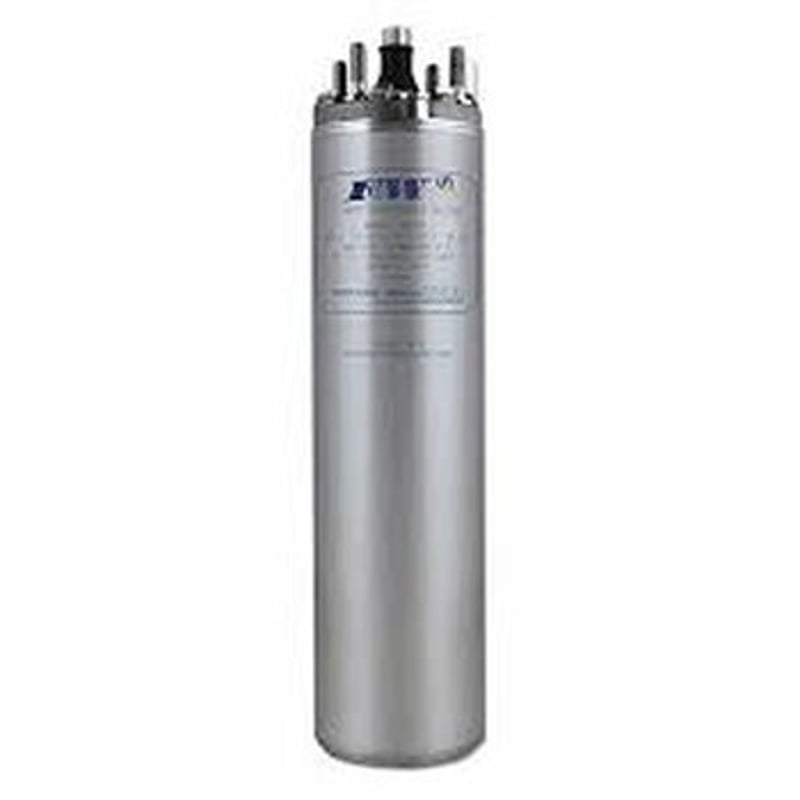

Zoeller 4" Submersible Motor, 1 HP, 3-wire, 230V, single-phase — 4" submersible motor for residential and light commercial well pump systems; stainless steel construction, external control box required.
OverviewThe Zoeller 1 HP 4" submersible motor at 230V 3-wire delivers capacitor-start performance and external overload protection via a matched control box, making it well suited for deeper well installations or pump settings with higher starting loads. The 3-wire configuration is the industry-standard choice where surface-side motor protection and reliable starting are priorities. Rated at 230V 60 Hz single-phase.Stainless steel motor shell resists corrosion in groundwater environments. Requires a matched 1 HP 230V control box (sold separately). Compatible with Zoeller and Flint & Walling 4" stainless steel pump ends. Works with constant pressure drive systems in variable demand applications. For residential and light commercial potable water supply in standard 4" well casings.
Specifications

HP	1 HP
Voltage	230V
Phase	Single-phase
Hz	60 Hz
Wire	3-wire (control box required)
Casing diameter	4"
Part No.	FW-1P-1-230V-3W
