3/4HP, 230VOLT, 3 WIRE, 1 PHASE MOTOR

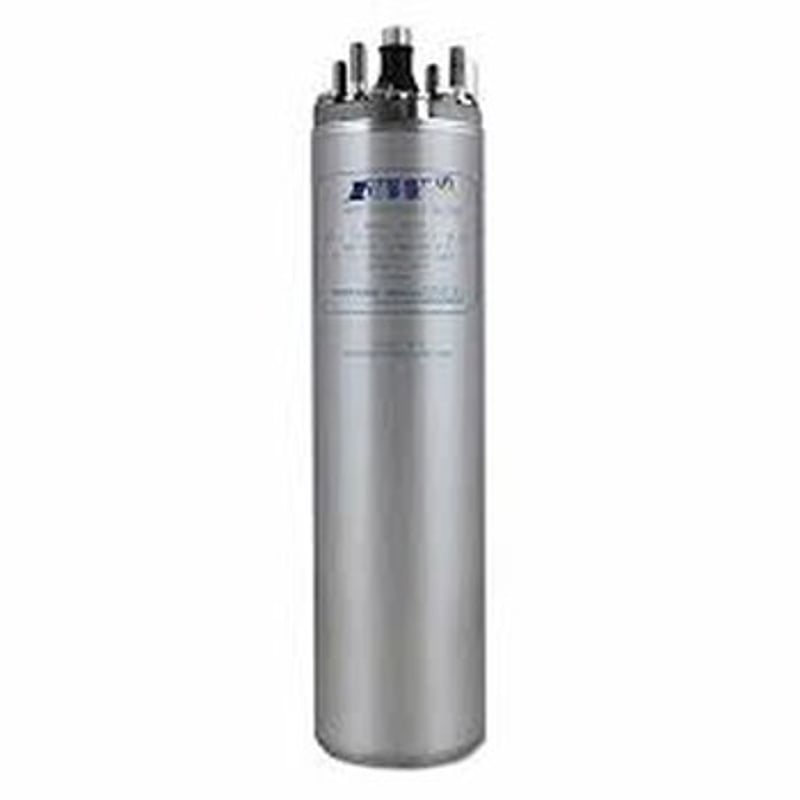

Zoeller 4" Submersible Motor, 3/4 HP, 3-wire, 230V, single-phase — 4" submersible motor for residential well systems; stainless steel construction, external control box required.
OverviewThe Zoeller 3/4 HP 4" submersible motor at 230V 3-wire provides capacitor-start operation via an external control box for enhanced starting torque and motor protection. The 3-wire configuration is preferred for deeper well settings or systems benefiting from surface-side overload protection. Rated at 230V 60 Hz single-phase for North American residential and light commercial potable water well service.Stainless steel motor shell resists corrosion in groundwater environments. Requires a matched 3/4 HP 230V control box (sold separately). Compatible with Zoeller and Flint & Walling 4" stainless steel pump ends. Also compatible with constant pressure VFD systems. For replacement or new installation in standard 4" well casings.
Specifications

HP	3/4 HP
Voltage	230V
Phase	Single-phase
Hz	60 Hz
Wire	3-wire (control box required)
Casing diameter	4"
Part No.	FW-1P-007-230V-3W
