1/2HP, 230VOLT, 3 WIRE, 1 PHASE MOTOR

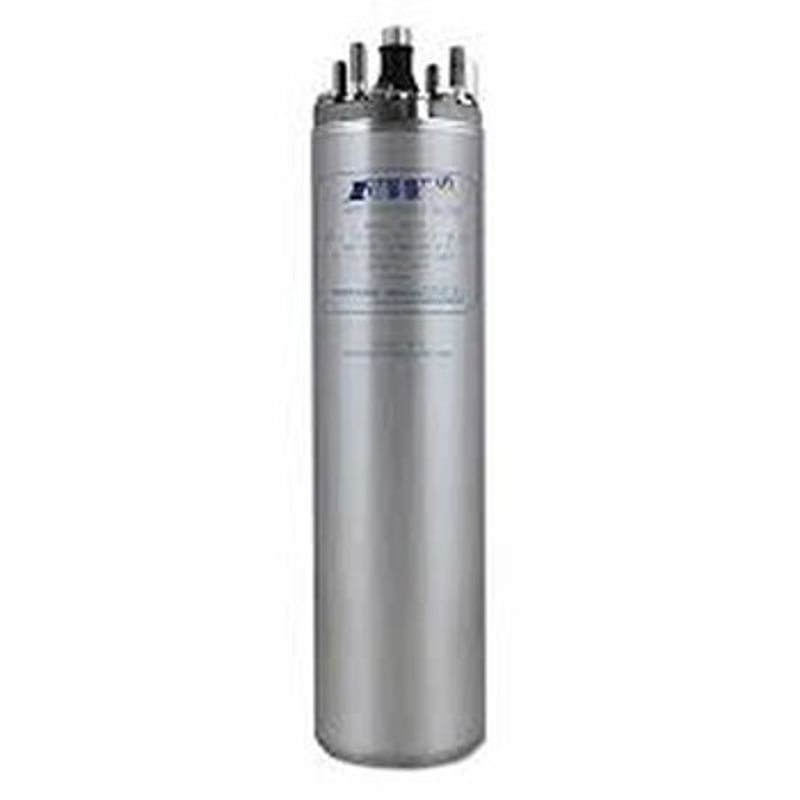

Zoeller 4" Submersible Motor, 1/2 HP, 3-wire, 230V, single-phase — 4" submersible motor for residential well systems; stainless steel construction, external control box required.
OverviewThe Zoeller 1/2 HP 4" submersible motor at 230V 3-wire is engineered for pairing with 4" pump ends where an external control box is used. The 3-wire configuration provides enhanced motor protection and superior starting torque via the external capacitor-start control box, making it preferred for installations that benefit from overload protection at the surface. Rated at 230V 60 Hz single-phase.The motor is constructed from stainless steel and is compatible with Zoeller and Flint & Walling 4" pump ends. A matched control box (sold separately) is required for 3-wire operation. This configuration is also compatible with many constant pressure drive systems. Suited to residential potable water applications in standard 4" well casings.
Specifications

HP	1/2 HP
Voltage	230V
Phase	Single-phase
Hz	60 Hz
Wire	3-wire (control box required)
Casing diameter	4"
Part No.	FW-1P-005-230V-3W
