1/2HP, 115VOLT, 2 WIRE, 1 PHASE MOTOR

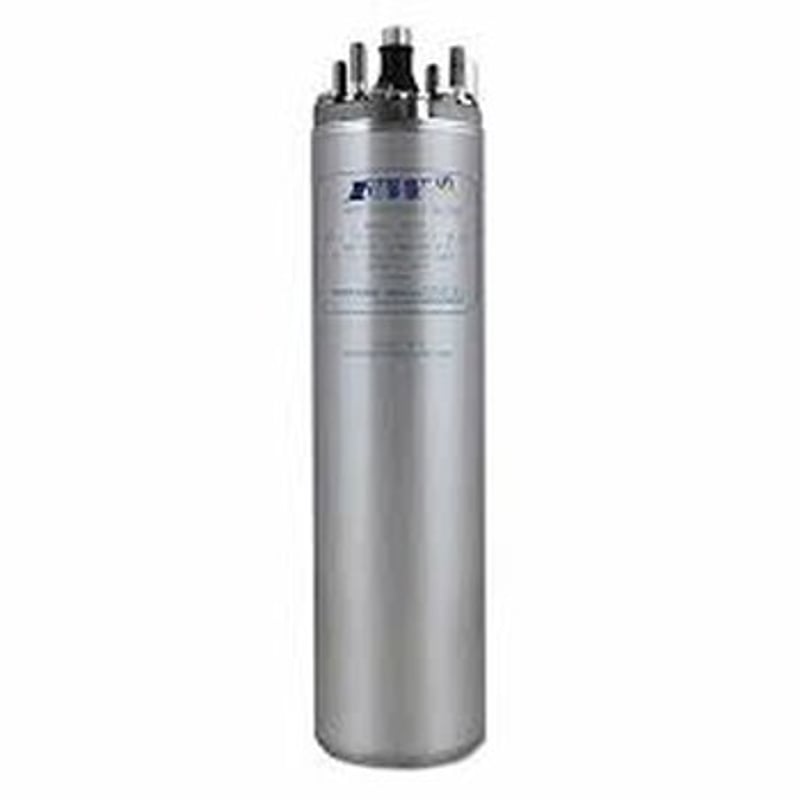

Zoeller 4" Submersible Motor, 1/2 HP, 2-wire, 115V, single-phase — 4" submersible motor for residential well pump systems; stainless steel construction, no control box required.
OverviewThe Zoeller 1/2 HP 4" submersible motor at 115V is a 2-wire single-phase motor engineered for pairing with 4" submersible pump ends in residential well water supply applications. The 2-wire configuration integrates the start capacitor internally, eliminating the need for a separate control box and simplifying replacement and new installation work. Suitable for shallow to moderate pump settings at 115V service.The motor shell is constructed from stainless steel for long service life in groundwater environments with moderate mineral content. Designed for direct pairing with Zoeller and compatible stainless steel 4" pump ends. Motor is rated at 60 Hz single-phase and is compatible with constant pressure drive systems when needed. Backed by Zoeller's warranty program.
Specifications

HP	1/2 HP
Voltage	115V
Phase	Single-phase
Hz	60 Hz
Wire	2-wire (no control box required)
Casing diameter	4"
Part No.	FW-1P-005-115V-2W
