FRANKLIN ELECTRIC SALES INC.
SUBDRIVE UTILITY 2 WIRE 115V/230V DRIVE NEMA 3R (use with 1ph-2 wire motors 1/3hp-1.5hp)
$2,431.94
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock

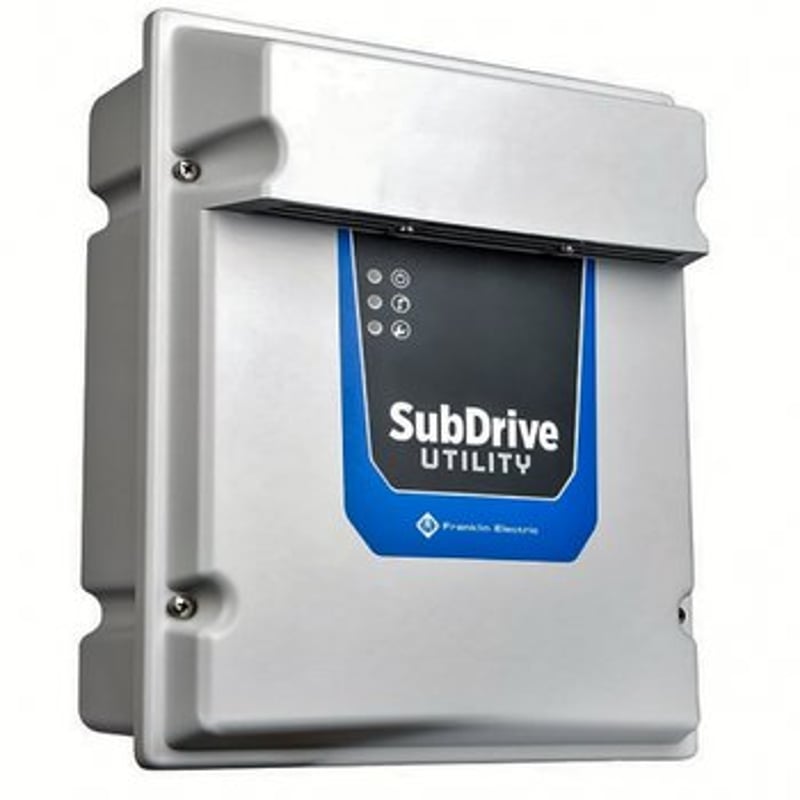

SubDrive Utility variable-speed drive for 2-wire single-phase well pump motors
A Type 3R drive for 2-wire, single-phase pump motors up to 1/2 hp on 115 VAC or 1.5 hp on 230 VAC. It takes 208/230 VAC in, sends variable-frequency power out and comes with a pressure sensor.
Sizing
- Input: 208/230 VAC single-phase, 20 A, 2500 W maximum
- Output: 115/230 VAC, 13.1 A maximum
- Output frequency 40 to 60 Hz (CEN) or 30 to 60 Hz (SUB)
Installation
- Type 3R enclosure, operating range -13 to 122 °F (-25 to 50 °C)
- Pressure sensor included; a pressure transducer is not
- cUL Listed / UL, and ANSI/NSF Standard 61 for drinking water
Warranty: 12 months from installation, 24 months from manufacture. Instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
| Brand | Franklin Electric |
|---|---|
| Manufacturer part # | 5870202003 / SUBDRIVE UTILITY UT2W |
| Type | SubDrive Utility variable-speed drive for 2-wire single-phase motors |
| Maximum motor size | 1/2 hp at 115 VAC; 1.5 hp at 230 VAC |
| Input voltage | 208/230 VAC, single-phase |
| Input frequency | 50/60 Hz |
| Input current | 20 A |
| Maximum input power | 2500 W |
| Input power factor | 0.52 |
| Output voltage | 115/230 VAC, single-phase 2-wire |
| Maximum output current | 13.1 A |
| Output frequency | CEN: 40 to 60 Hz; SUB: 30 to 60 Hz |
| Pressure sensor | Included |
| Pressure transducer | Not included |
| Enclosure rating | Type 3R |
| Operating temperature | -13 to 122 °F (-25 to 50 °C) |
| Storage temperature | -13 to 149 °F (-25 to 65 °C) |
| Certification | cUL Listed / UL; ANSI/NSF Standard 61 |
| Package dimensions | 14.13 × 12 × 7.75 in (36 × 30 × 20 cm), L × W × H |
| Shipping weight | 19.84 lb (9.0 kg) |
| Warranty | 12 months from installation, 24 months from manufacture |
