FRANKLIN ELECTRIC SALES INC.
VersaJet-1PH 3/4HP 115/230V CAST IRON PUMP
$1,323.00
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock

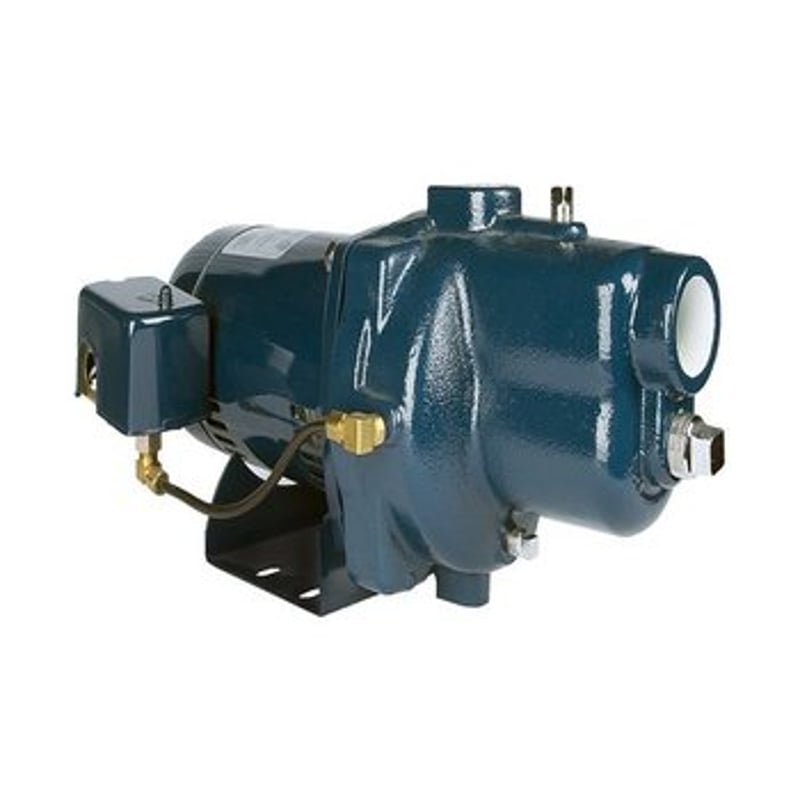

3/4 hp cast iron VersaJet shallow well jet pump, 115/230 V
A Franklin Electric VersaJet shallow well jet pump with a 3/4 hp dual-voltage motor and a cast iron body. It lifts water from wells up to 25 ft (7.6 m) deep to supply fresh water to rural homes, farms and cabins.
Where it fits
- Shallow well applications, 25 ft (7.6 m) of lift
- Motor, impeller and electrical controls all sit above ground within easy reach
- For a different pressure and flow, swap the factory jet nozzle for one of the other nozzles provided
Specs to check
- 3/4 hp, 115/230 VAC, 6.2 A at 230 V, service factor 1.27
- 1.25" FNPT suction, 1" FNPT discharge
- Maximum fluid temperature 120 °F (49 °C), NSF/ANSI 372 for drinking water
Warranty: 12 months from installation, 24 months from manufacture. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
| Brand | Franklin Electric |
|---|---|
| Manufacturer part # | 91180007 / FVJ07CI |
| Pump type | Shallow well jet pump, VersaJet series |
| Motor power | 3/4 hp |
| Voltage | 115/230 VAC |
| Phase | Single-phase |
| Frequency | 60 Hz |
| Amps at 230 V | 6.2 A |
| Service factor | 1.27 |
| Maximum lift | 25 ft (7.6 m) |
| Maximum fluid temperature | 120 °F (49 °C) |
| Motor enclosure | ODP |
| Pump body material | Cast iron |
| Impeller | Closed, modified PPO |
| Seal | Mechanical, phenolic/ceramic x Buna-N |
| Suction | 1.25" FNPT |
| Discharge | 1" FNPT |
| Certification | NSF/ANSI 372 |
| Product dimensions | 18 × 9.18 × 7.97 in (46 × 23 × 20 cm), L × W × H |
| Package dimensions | 19.88 × 11 × 12.25 in (50 × 28 × 31 cm), L × W × H |
| Product weight | 34 lb (15.4 kg) |
| Shipping weight | 34.5 lb (15.6 kg) |
| Warranty | 12 months from installation, 24 months from manufacture |
