FRANKLIN ELECTRIC SALES INC.
INLINE PUMP PRESSURE CONTROL -SWC 115/230V .75- 2 HP
$437.50
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock

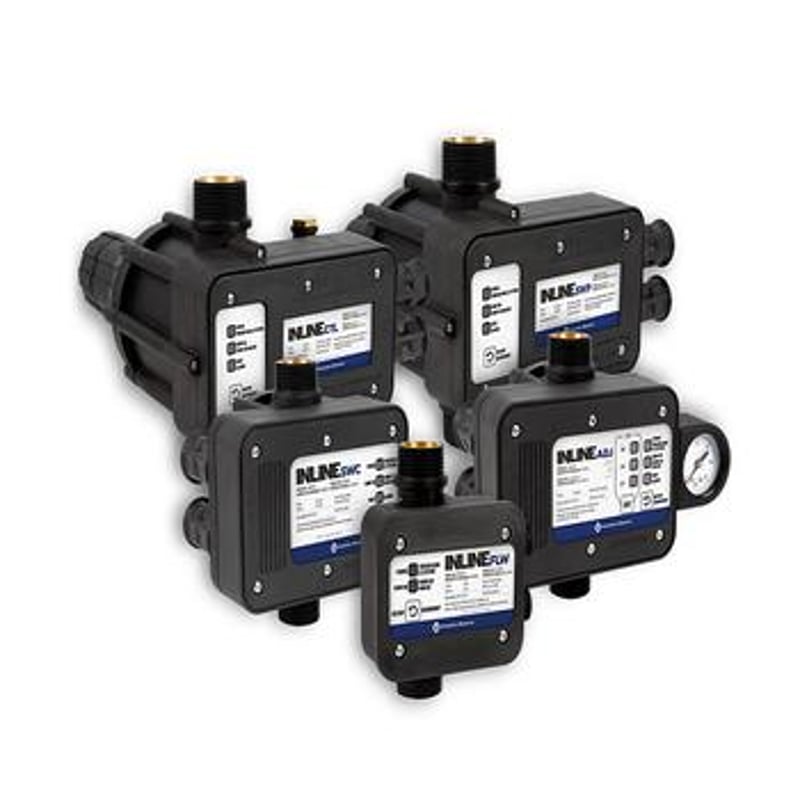

Franklin Electric SWC Inline Pump Pressure Control, 115/230V, 0.75–2 HP — electronic pressure controller for inline pump and booster duty.
OverviewThe Franklin Electric SWC inline pump pressure control is an electronic pressure switch replacement for jet pumps and inline booster pumps rated from 0.75 to 2 HP. It uses electronic sensing to control pump on/off based on system pressure, replacing the mechanical diaphragm pressure switch with improved responsiveness and integrated dry-run protection. The inline design suits tight pump station layouts.Rated for 115/230V single-phase service, 0.75 to 2 HP. Electronic pressure sensing eliminates the mechanical diaphragm failure mode of conventional pressure switches. Integrated dry-run protection shuts down the pump on loss of system pressure without a separate low-pressure switch. Wire per Franklin Electric SWC installation manual; confirm HP rating and voltage match the installed pump motor.
Specifications
OverviewThe Franklin Electric SWC inline pump pressure control is an electronic pressure switch replacement for jet pumps and inline booster pumps rated from 0.75 to 2 HP. It uses electronic sensing to control pump on/off based on system pressure, replacing the mechanical diaphragm pressure switch with improved responsiveness and integrated dry-run protection. The inline design suits tight pump station layouts.Rated for 115/230V single-phase service, 0.75 to 2 HP. Electronic pressure sensing eliminates the mechanical diaphragm failure mode of conventional pressure switches. Integrated dry-run protection shuts down the pump on loss of system pressure without a separate low-pressure switch. Wire per Franklin Electric SWC installation manual; confirm HP rating and voltage match the installed pump motor.
Specifications
| Voltage | 115/230V, 1-phase |
| HP range | 0.75–2 HP |
| Function | Electronic pressure control & dry-run protection |
| Application | Inline and jet pump system pressure control |
| Note | See manufacturer for complete electrical ratings and wiring diagram. |
| Part No. | FE-91987103 |
- Automatic start on demand
- Run-dry protection
- 150 °F (65.5 °C) maximum temperature
- Eliminates the need for a bladder tank and pressure switch
| Brand | Franklin Electric |
|---|---|
| Manufacturer part # | 91987103 / FIL-SWC16 |
| Type | Inline constant pressure control |
| Motor size | Up to 2 hp |
| Voltage | 115/230 V |
| Maximum current | 16 amp |
| Connection | 1" MNPT |
| Maximum temperature | 150 °F (65.5 °C) |
| Run-dry protection | Yes |
| Bladder tank and pressure switch | Not required |
