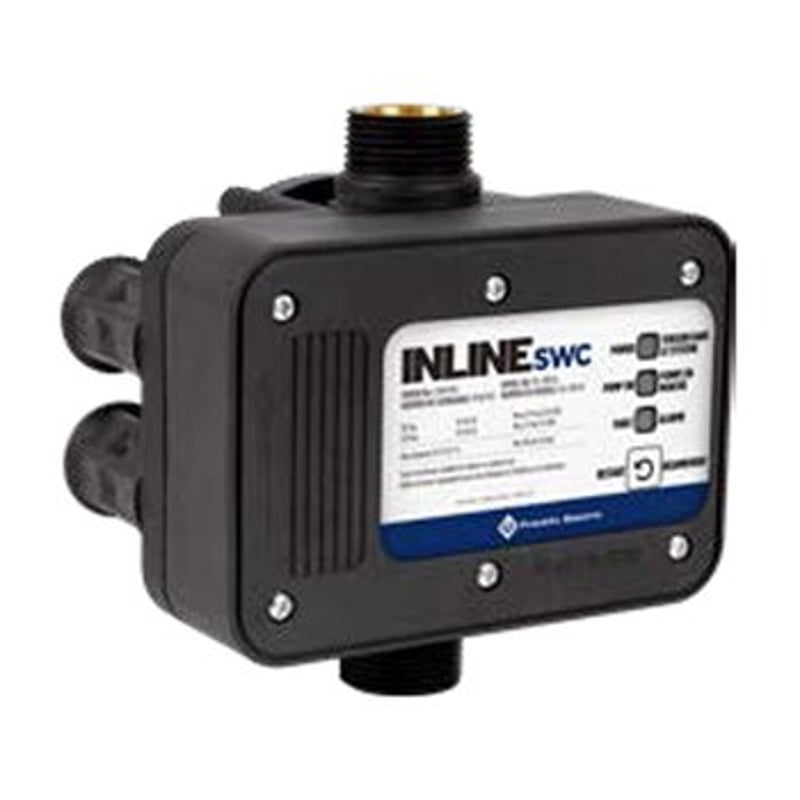

FLW CONTROLLER 115/230V .75 HP-1.5HP

Franklin Electric FLW Flow Controller, 115/230V, 0.75–1.5 HP — electronic flow and pressure controller for jet pump systems.
OverviewThe Franklin Electric FLW flow controller provides electronic motor protection and automatic run control for jet pump systems rated from 0.75 to 1.5 HP. It monitors flow conditions and de-energizes the pump on low-flow or dry-run conditions, protecting the motor from damage. It replaces a conventional pressure switch in jet pump systems and simplifies pressure system wiring by combining motor control and protection in one unit.Rated for 115/230V single-phase service in the 0.75 to 1.5 HP range. The unit detects loss of prime, low flow, and dry-run conditions and shuts down the pump with a timed reset, reducing service calls from failed pressure switches or burned motor windings. Compatible with standard jet pump bodies and pressure tank systems. Install per Franklin Electric wiring diagram; confirm voltage selection before connecting supply.
Specifications

Voltage	115/230V, 1-phase
HP range	0.75–1.5 HP
Function	Flow controller — dry-run & low-flow protection
Application	Jet pump system motor control & protection
Note	See manufacturer for complete electrical ratings and wiring diagram.
Part No.	FE-91987102
