FILTER AMIAD 3/4 500M (GREEN) SCREEN

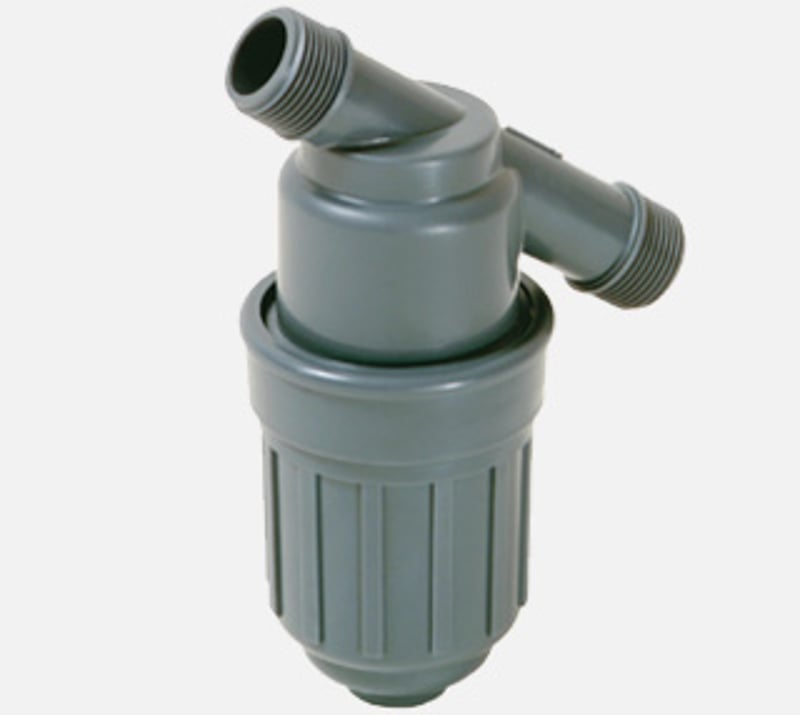

Amiad 3/4" Y-Filter — 500 Mesh (25 Micron)
OverviewThe Amiad Y-filter is a compact inline filter designed for turf and drip irrigation systems. Water enters through the 3/4" inlet, passes through the cylindrical filter screen, and exits the outlet; particles larger than the screen rating are trapped inside the filter body for periodic flushing or screen removal and cleaning. The Y-body orientation allows the filter to be installed in a horizontal or angled mainline run.The polypropylene screen filters sand, sediment, and organic matter to protect emitters, nozzles, and valves downstream. Filter covers thread off for easy screen inspection and cleaning. Rated to 150 PSI working pressure.
Specifications

Model	F-AMI-007500
Connection	3/4" NPT
Screen	500 mesh (25 micron) — fine filtration
Color	Green body
Max Pressure	150 PSI
Body Material	Polypropylene
