FILTER AMIAD 3/4 100M POLY (YELLOW) SCREEN

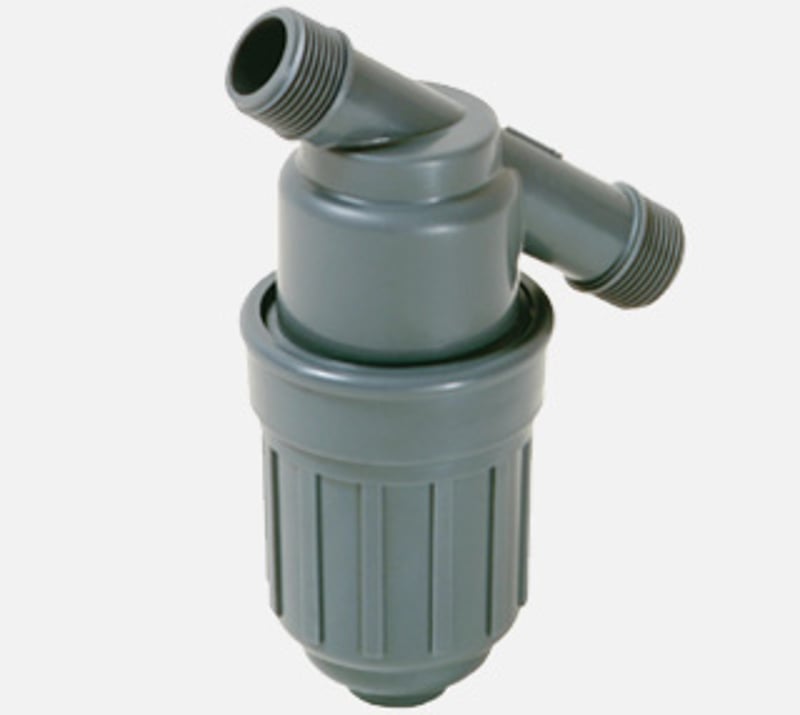

Amiad 3/4" Poly Y-Filter — 100 Mesh (140 Micron)
OverviewThe Amiad Y-filter is a compact inline filter designed for turf and drip irrigation systems. Water enters through the 3/4" inlet, passes through the cylindrical filter screen, and exits the outlet; particles larger than the screen rating are trapped inside the filter body for periodic flushing or screen removal and cleaning. The Y-body orientation allows the filter to be installed in a horizontal or angled mainline run.The polypropylene screen filters sand, sediment, and organic matter to protect emitters, nozzles, and valves downstream. Filter covers thread off for easy screen inspection and cleaning. Rated to 150 PSI working pressure.
Specifications

Model	F-AMI-007100-P
Connection	3/4" NPT
Screen	100 mesh polypropylene (140 micron)
Color	Yellow body
Max Pressure	150 PSI
Body Material	Polypropylene
