NDS tubING VINYL 220X160 CUT

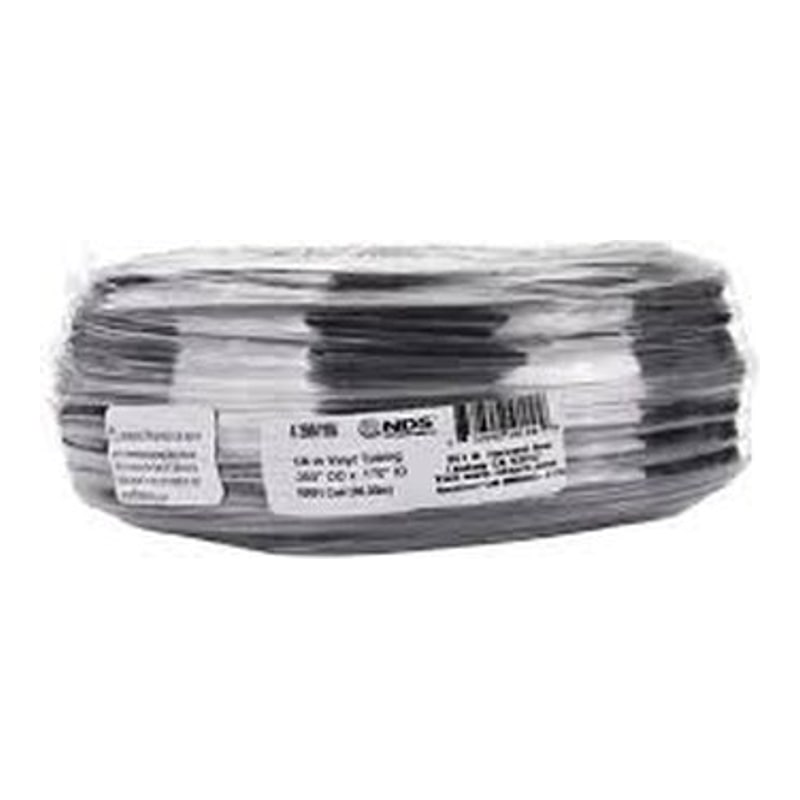

NDS 220 Micro Tubing, 0.220" OD — vinyl micro distribution tubing; for single-plant emitter leads and micro-spray extensions in drip systems.
Overview NDS 220 micro tubing (OD 0.220", ID 0.160") is a fine-bore vinyl tubing used as a distribution lead from a drip mainline or manifold to individual emitters, micro-sprays, or bubblers. Its small OD allows tight routing in container and bed installations without obstructing root zone access. The tubing is flexible enough to route around obstacles and hold shape when staked near plant bases. Connects to a drip mainline via a small barb fitting (punched with a micro-punch tool); the opposite end accepts 1/4" barb emitters, stakes, and micro-spray heads. Compatible with standard drip emitter fittings and stakes. Maximum working pressure as specified by the system designer; ensure the mainline pressure is regulated appropriately for emitter type. Vinyl construction provides flexibility for routing and UV resistance for surface-laid segments.
Specifications

Outside diameter	0.220"
Inside diameter	0.160"
Material	Vinyl
Application	Individual emitter distribution lead
Fitting compatibility	1/4" barb emitters and micro-sprays
Part No.	DRIP220VxCUT
