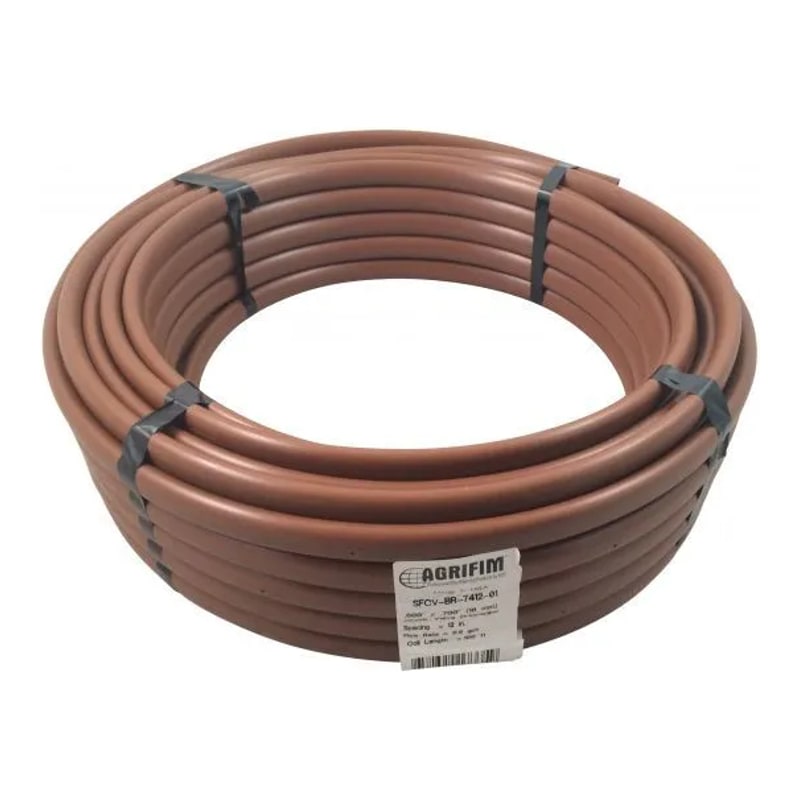

NDS Dripline 1 GPH, Dura-Flo Inline Check Valve, 12" Spacing, 250' - BROWN

NDS Dura-Flo CV Dripline, 1.0 GPH GPH — 12"" emitter spacing; integrated check valves; rated up to 50 PSI.
Overview NDS Dura-Flo CV is a 17mm/18mm dripline with factory-installed check valves delivering 1.0 GPH GPH at 12"" emitter spacing. The check valves prevent line drainage after irrigation cycles, a critical feature for sloped terrain where residual drainage would over-water low-lying areas. Maximum operating pressure: 50 PSI. Dura-Flo CV is suitable for turf subsurface drip, shrub beds, and sloped drip conversions replacing spray heads. Dura-Flo CV connects with standard 17mm drip barb fittings, end caps, and flushing assemblies. Requires 120-mesh minimum filtration. The black UV-stable polyethylene tubing is designed for burial at 4–6" but can be surface-laid under mulch in bed applications. Available in coil lengths suitable for residential and small commercial drip systems.
Specifications

Emitter flow rate	1.0 GPH GPH
Emitter spacing	12""
Max working pressure	50 PSI
Check valve	Integrated
Part No.	DI-DF-12-1-250
