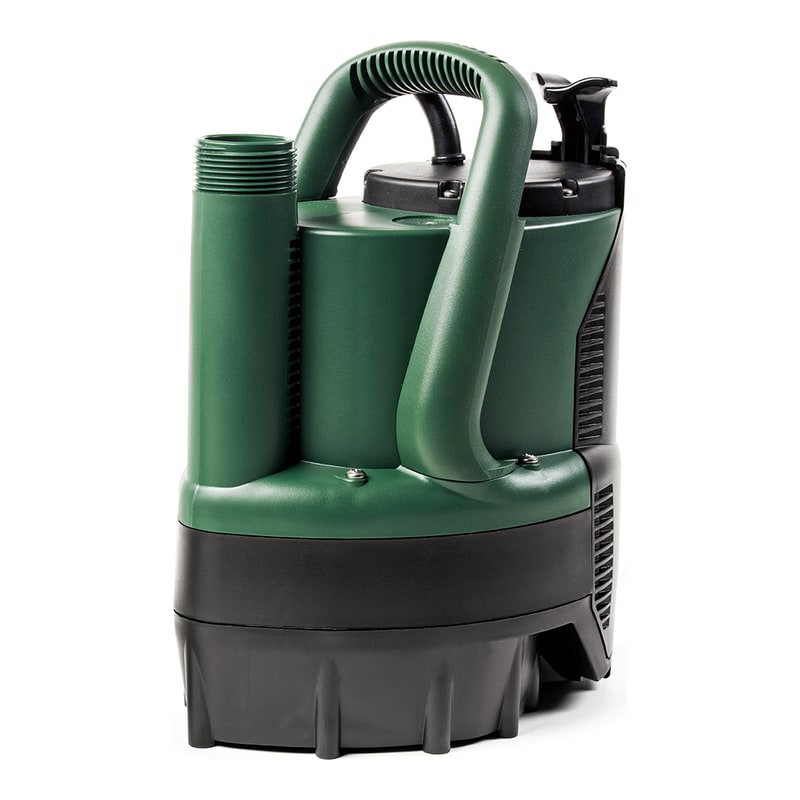

Verty Nova compact sump pump for narrow pits and grey water
A sump pump built to drain narrow pits as small as 7.9 × 7.9 in (20 × 20 cm). It has a built-in float switch with a lever for manual or automatic operation, and it pumps clear water and grey water without fibres, with particles up to 0.2 in (5 mm). Voltage and horsepower for this listing are in the product title.
Series figures
- 4.4 to 52.8 gpm (1 to 12 m³/h) with head up to 30 ft (9 m)
- Maximum immersion depth 23 ft (7 m)
- Picks up water down to 0.1 in (3 mm) in manual mode

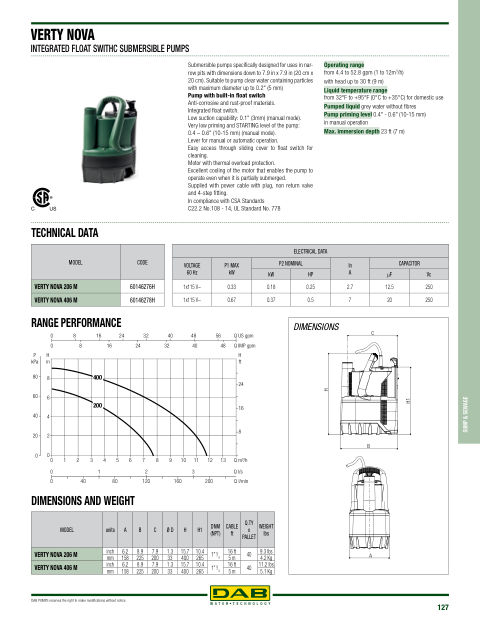

- This model's own figures are on the spec sheet under Downloads
Installation
The cable with plug, non-return valve and 4-step fitting come with the pump, so there is little to source for a standard pit. The vertical float is reachable through a sliding cover for cleaning. The motor has thermal overload protection and cools well enough to run partially submerged. Materials are anti-corrosive and rust-proof, and the pump meets CSA C22.2 No. 108-14 and UL 778. Liquid temperature is 32 °F to 95 °F (0 °C to 35 °C) for domestic use.

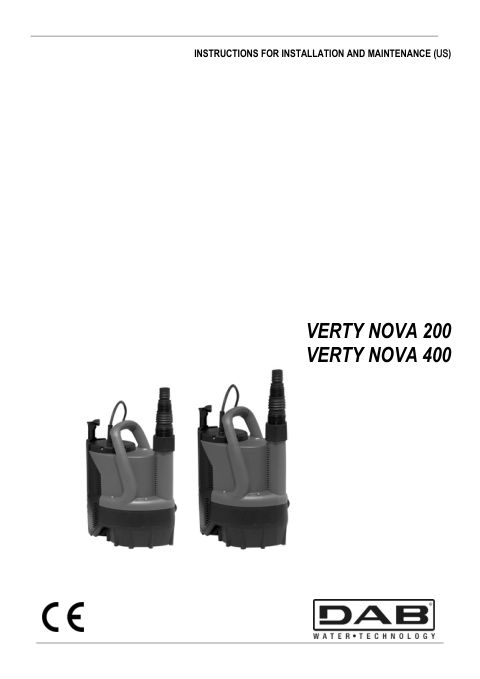

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Suitable to pump clear water containing particles with maximum diameter up to 0.2 in (5 mm).
- Pump with built-in float switch. Lever to select manual or automatic operation.
- Anti-corrosive and rust-proof materials.
- Easy access to the vertical float through a sliding cover for cleaning.
- Motor with thermal overload protection.
- Excellent cooling of the motor enables the pump to operate even when it is partially submerged.
- Supplied with power cable with plug, non-return valve and 4-step fitting.
- In compliance with CSA Standards C22.2 No. 108-14, UL Standard No. 778.
| Brand | DAB |
|---|---|
| Manufacturer part # | VERTY NOVA |
| Type | Sump pump with built-in float switch |
| Operating range (series) | 4.4 to 52.8 gpm (1 to 12 m³/h), head up to 30 ft (9 m) |
| Minimum pit size | 7.9 × 7.9 in (20 × 20 cm) |
| Pumped liquid | Clear or grey water without fibres, particles up to 0.2 in (5 mm) |
| Liquid temperature range | 32 °F to 95 °F (0 °C to 35 °C) for domestic use |
| Maximum immersion depth | 23 ft (7 m) |
| Low suction capability | 0.1 in (3 mm) in manual mode |
| Pump priming level | 0.4 in to 0.6 in (10 to 15 mm) in manual operation |
| Operating modes | Manual or automatic, selected by lever |
| Motor protection | Thermal overload protection |
| Included | Power cable with plug, non-return valve and 4-step fitting |
| Standards | CSA C22.2 No. 108-14, UL 778 |
